SK088 Projectile Motion Experiment

$999.00

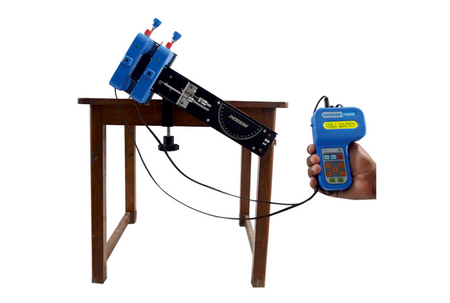

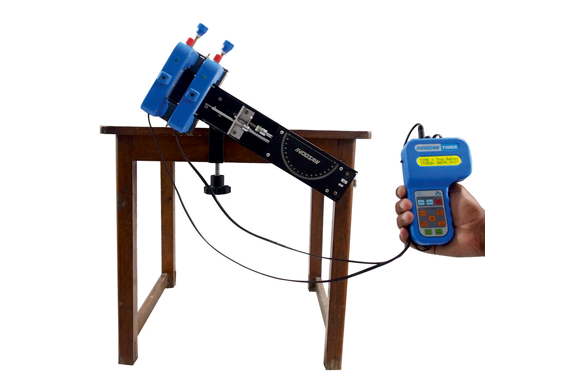

Projectile Motion Experiment

The projectile motion is for experimentally determining trajectories when a projectile is launched either horizontally or at an angle. Angles between 0° and 90° may be selected. Varying the tension in the spring can also enable different launch velocities.

Features:

  • 1 Projectile Launcher with Bench Clamp
  • 1 Digital Timer with Adaptor
  • 1 Pair of Photogates with Cable
  • 1 Photogate clamp
  • 2 Plastic Balls

Objectives:

  • To determine the range of projectile as a function of the angle of inclination.
  • To determine the (maximum) range as a function of the initial velocity.

Technical Data:

Projectile Launcher

    • Angle : 90° – 0° – 90° through plumb line
    • Clamping : Bench or Table via ‘U’ clamp
    • Clamping width : upto 35mm
    • Tension : Spring loaded
    • Projectile ball : Plastic, 15mm dia. (approx.)

Digital Timer & Photogate

  • Display : 2 line LCD
  • Type : Micro controller based
  • Time resolution : 0.1 milli second
  • Mode : Time, Speed & Acceleration
  • Photogate : 2 Nos.
  • Interface : USB
  • Operating voltage : 5V DC
  • Photogate detector : Infra-Red

Scope of Delivery:

  • 1 Projectile Launcher with Bench Clamp
  • 1 Digital Timer with Adaptor
  • 1 Pair of Photogates with Cable
  • 1 Photogate clamp
  • 2 Plastic Balls

Key Topics:

  • Range of a ball.
  • Projectile Range Versus Angle.
  • Projectile Path.
  • Conservation of energy.
  • Initial Velocity of the Ball.
