Biot Savart’s Law
A current carrying circular conductor loop produces a magnetic field along its axis which is defined by Biot Savart’s law.
B = μο / 2 x I . R2 / (R2+x2)3/2
Where R=Radii of the loop, x =Distance from axis through center.

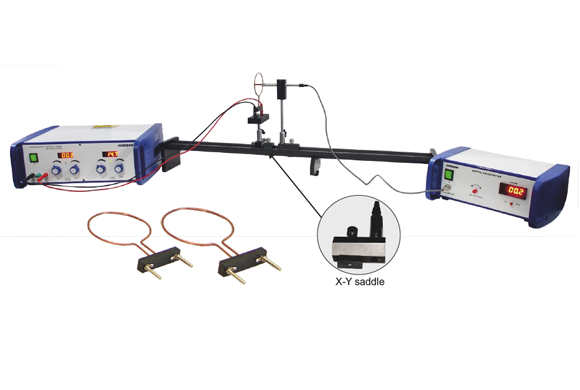

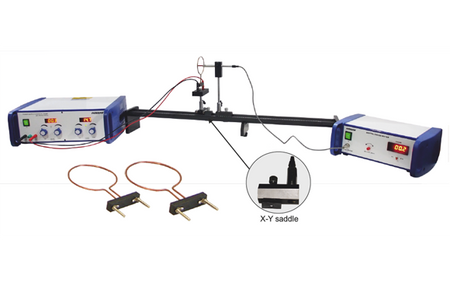

In present setup, three conductor loops of different radii mounted on a special loop holder is provided for investigation. The magnetic field is measured using axial hall probe. A high current power supply is provided to produce the magnetic field.
Features:
- DC Regulated power supply with safety sockets and dual temperature controlled exhaust fan.
- Digital Gauss meter with least count of 0.1 Gauss.
- 3 coils with different diameter.
- 4mm Safety sockets and plugs are used to make connection.
- Specially designed hexagonal optical bench with locking arrangement for precise positioning.
Objectives:
- To study the magnetic field of a circular conductor as a function of the current.
- To study the magnetic field of a circular conductor as a function of distance along the axis of the conductor
- To study the magnetic field as a function of loop radius.
Technical Data:
- Circular Loops : Copper, loop dia. 20mm, 80mm, 120mm wire dia. 3mm, loop holder rod 10mm dia.
- Digital Gauss Meter : Range 200 G & 2 k G, sensor In As, display 3½ Meter digit LED, resolution 0.1G at 0 – 200 G, offset by potentiometer to set ZERO Input voltage 220 V, ± 5 %, 50 Hz AC
- Power Supply : 0-30V DC, 0-20A, Input voltage 220V, ±5%, 50Hz AC, voltage resolution 0.1V, display 2½ digit LED, current resolution 0.1 A, primary fuse 8 Amp
Scope of Delivery:
- 1 Optical bench (0.5m)
- 1 Set of 3 circular loops with holders
- 1 Power supply 0-30 V DC, 20 A
- 1 Gauss meter with axial probe
- 1 Flexible plug lead (100 cm), red
- 1 Flexible plug lead (100 cm), black
- 1 Fixed saddle
- 1 Transversal Saddle with micrometer
- 1 Axial Probe holder
Key Topic:
- Biot Savart’s law
- Magnetic flux lines.
- Induction.
- Wire loop.
