Radiation Characteristic and Polarization of Decimeter Waves

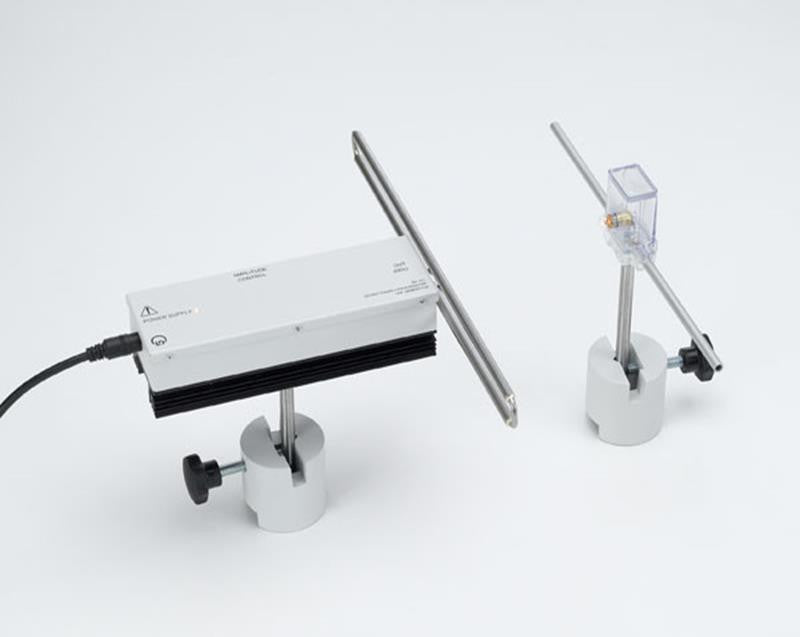

The experiment P3.7.2.1 investigates the radiation characteristic of a l/2 dipole for decimeter waves. Here, the receiver is aligned parallel to the transmitter and moved around the transmitter. In a second step, the receiver is rotated with respect to the transmitter in order to demonstrate the polarization of the emitted decimeter waves.

COMPONENTS OF EQUIPMENT SETS:

1	587 551	UHF wave generator
1	531 110	Multimeter LDanalog 10
2	300 11	Saddle base
2	501 38	Connecting lead, 32 A, 200 cm, black
