P2.6.2.4 pV Diagram of the Hot-Air Engine as a Heat Engine - Recording and Evaluating with CASSY

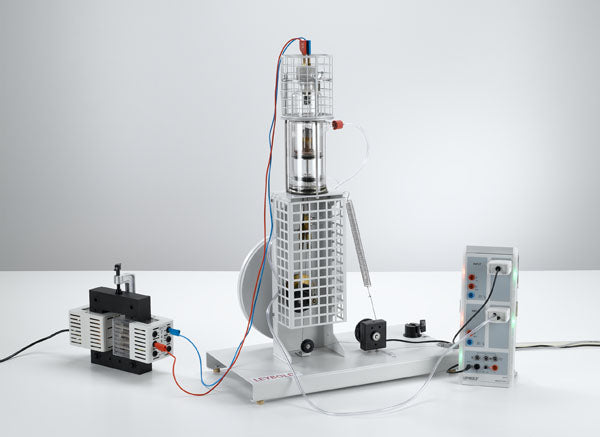

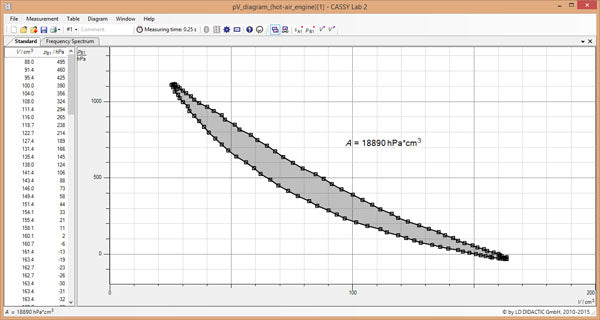

In the experiment P2.6.2.4, the pV diagram of the hot air engine as a heat engine is recorded using the computer-assisted measured value recording system CASSY. The pressure sensor measures the pressure p in the cylinder and a rotary motion sensor measures the position s, from which the volume is calculated, as a function of the time t. The measured values are displayed on the screen directly in a pV diagram. In the further evaluation, the mechanical work performed as piston friction per cycle
and from this the mechanical power
are calculated and plotted in a graph as a function of the no-load speed.
COMPONENTS INCLUDED IN SET UP:
| 1 | 388 182 | Hot-air engine |
| 1 | 562 11 | U-core with yoke |
| 1 | 562 121 | Clamping device with spring clip |
| 1 | 562 21 | Mains coil, 500 turns |
| 1 | 562 18 | Coil, 50 turns, extra-low voltage |
| 1 | 524 013 | Sensor-CASSY 2 |
| 1 | 524 220 | CASSY Lab 2 |
| 1 | 524 082 | Rotary motion sensor S |
| 1 | 524 064 | Pressure sensor S, ±2000 hPa |
| 1 | 309 48 | Fishing line |
| 1 | 352 08 | Helical spring 25 N/m |
| 2 | 501 33 | Connecting lead, 32 A, 100 cm, black |
| 1 | additionally required: PC with Windows XP/Vista/7/8/10 (x86 or x64) |
|
| 1 | 388 181 | * Immersion pump |
| 1 | 521 231 | * Low-voltage power supply 3/6/9/12 V |
| 2 | 667 194 | * Silicone tubing 7 mm Ø, 1 m |
| 1 | 604 3131 | * Wide-mouthed can 10 l |
| 1 | 520 8105 | * Virtual experiment: Hot-air engine pV diagram of the hot-air engine as a heat engine |
