P1.1.3.1 Determining the Gravitational Constant with the Gravitation Torsion Balance after Cavendish - Measuring the Excursion with a Light Pointer
Leybold LD Didactic

P1.1.3.1 Determining the Gravitational Constant with the Gravitation Torsion Balance after Cavendish - Measuring the Excursion with a Light Pointer

Regular price $3,900.00 $0.00 Unit price per

Determining the gravitational constant with the gravitation torsion balance after Cavendish-measuring the excursion with a light pointer.

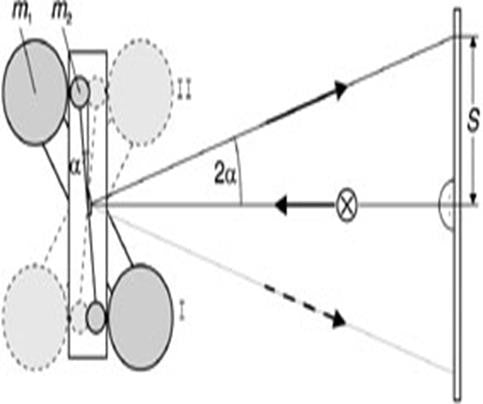

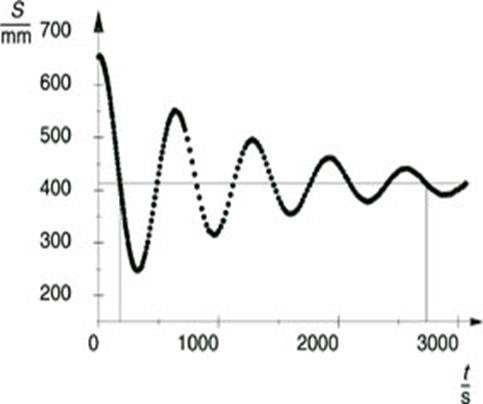

In the experiment P1.1.3.1, the light pointer is a laser beam which is reflected in the concave reflector of the torsion balance onto a scale. Its position on the scale is measured manually point by point as a function of time.

COMPONENTS OF EQUIPMENT SETS:

1 332 101 Gravitation torsion balance
1 471 791 Diode laser, 635 nm, 1 mW
1 313 05 Table stop-clock
1 311 77 Steel tape measure, 2 m
1 300 02 Stand base, V-shaped, small
1 301 03 Rotatable clamp
1 301 01 Leybold multiclamp
1 300 42 Stand rod, 47 cm, 12 mm diam.


EXPERIMENT INSTRUCTIONS PLEASE CLICK HERE
