Interference, Diffraction, & Polarization Kit Enhanced Model
LCP-6 combines optical interference, diffraction and polarization experiments. It has a whole series of opto mechanical parts and light sources, you can do your own research by the parts besides our experiments. Students will learn mostl optica knowledge in this kit.
Experiments
Build Interferometers and Observe Interference Patterns

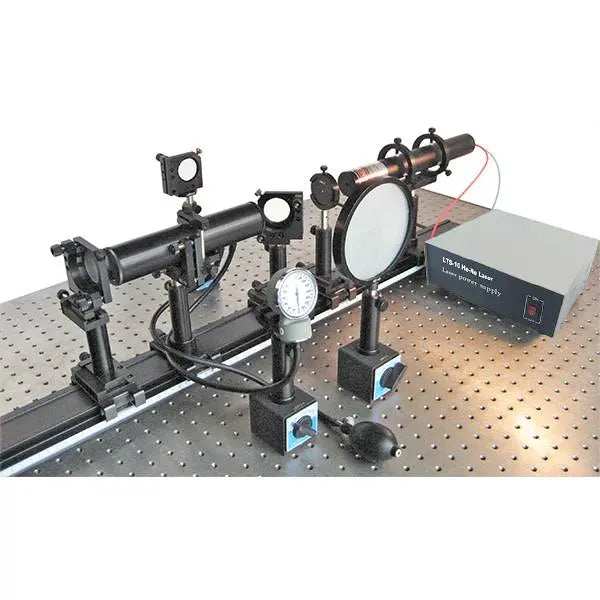

Construct a Michelson interferometer and measure the refractive index of air
Construct a Sagnac interferometer
Construct a Mach-Zehnder interferometer
Set Up Fraunhofer Diffraction and Measure Intensity Distribution
Fraunhofer diffraction through a Single Slit
Fraunhofer diffraction through a Multi-Slit Plate
Fraunhofer diffraction through a Single Circular Aperture
Fraunhofer diffraction through a Transmission Grating
Set Up Fresnel Diffraction and Measure Intensity Distribution
Fresnel diffraction through a Single Slit
Fresnel diffraction through a Multi-Slit Plate
Fresnel diffraction through a Circular Aperture
Fresnel diffraction past a Straight Edge
Measure and Analyze Polarization Status of Light Beams Brewster’s angle measurement of a black glassVerification of Malus’s LawFunction study of a half-wave plateFunction study of a quarter-wave plate: circularly and elliptically polarized light
Part List
| Description | Specs/Part # | Qty |
| He-Ne laser | LTS-10 (>1.5 mW@632.8 nm) | 1 |
| Transversal measurement stage | Range: 80 mm; accuracy: 0.01 mm | 1 |
| Magnetic base with post holder | LMP-04 | 3 |
| Two-axis mirror holder | LMP-07 | 2 |
| Lens holder | LMP-08 | 2 |
| Plate holder | LMP-12 | 1 |
| White screen | LMP-13 | 1 |
| Aperture adjustable bar clamp | LMP-19 | 1 |
| Adjustable slit | LMP-40 | 1 |
| Laser tube holder | LMP-42 | 1 |
| Optical goniometer | LMP-47 | 1 |
| Polarizer holder | LMP-51 | 3 |
| Beam splitter | 50:50 | 2 |
| Polarizer | 2 | |
| Half-wave plate | 1 | |
| Quarter-wave plate | 1 | |
| Black glass sheet | 1 | |
| Flat mirror | Φ 36 mm | 2 |
| Lens | f ‘ = 6.2, 150 mm | 1 each |
| Grating | 20 l/mm | 1 |
| Multiple-slit & multi-hole plate | Single slit: 0.06 & 0.1 mmMulti-slit: 2, 3, 4, 5 (slit width: 0.03 mm; center-to-center: 0.09 mm)Round holes: diameter: 0.05, 0.1, 0.2, 0.3, 0.4, 0.5 mm
Square holes: length: 0.05, 0.1, 0.2, 0.3, 0.4, 0.5 mm |
1 |
| Optical rail | 1 m; aluminum | 1 |
| Universal carrier | 2 | |
| X-translation carrier | 2 | |
| X-Z translation carrier | 1 | |
| Air chamber with gauge | 1 | |
| Manual Counter | 4 digits, counts 0 ~ 9999 | 1 |
| Photocurrent amplifier | 1 |
Note: a stainless steel optical table or breadboard ( ≥ 900 mm x 600 mm) is needed for use with this kit.
