LCP-4 Geometrical Optics Experiment Kit
Regular price
$3,999.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Geometrical Optics Experiment Kit
Description
The series of experiments of geometrical optics can set up various geometric optics experiment, students under the guidance of the teacher, the accessories provided by the company’s own free assembly experiment, the practical ability of students through this experiment not only build training, can inspire students thinking to achieve the purpose of cultivating students’ creative spirit and practical ability.
Experiments
- Measurement of the focal length of a convex lens based on self-collimation
2. Measurement of the focal length of a convex lens based on Bessel method
3. Measurement of the focal length of a convex lens based on lens imaging equation
4. Measurement of the focal length of a concave lens
5. Measurement of the focal length of an eyepiece
6. Measurement of the nodal locations and the focal length of a lens-group
7. Measurement of the magnification of a microscope
8. Measurement of the magnification of a telescope
9. Construction of a slide projector

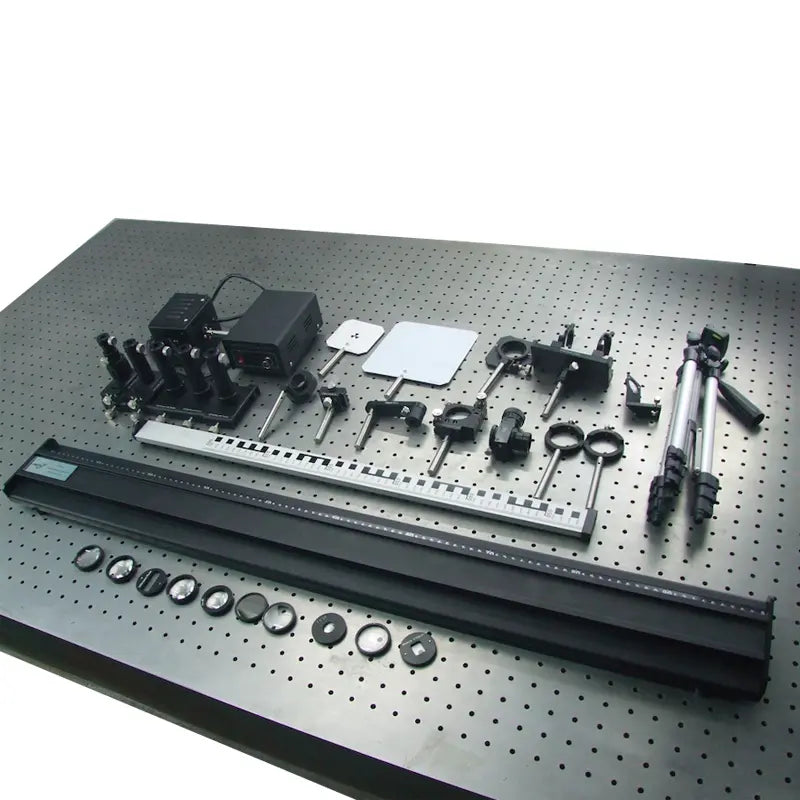

Part List
| Description | Specs/Part No. | Qty |
| Optical rail | 1 m; aluminum | 1 |
| Carrier | General | 2 |
| Carrier | X-translation | 2 |
| Carrier | X-Z translation | 1 |
| Bromine-Tungsten lamp | (12 V/30 W, variable) | 1 set |
| Two-axis mirror holder | 1 | |
| Lens holder | 2 | |
| Adaptor piece | 1 | |
| Lens group holder | 1 | |
| Direct reading microscope | 1 | |
| Eyepiece holder | 1 | |
| Plate holder | 1 | |
| White screen | 1 | |
| Object screen | 1 | |
| Standing ruler | 1 | |
| Reticle | 1/10 mm | 1 |
| Millimeter | 30 mm | 1 |
| Biprism holder | 1 | |
| Lenses | f = 45, 50, 100, -60, 150, 190 mm | 1 each |
| Plane mirror | dia 36 × 4 mm | 1 |
| 45° glass holder | 1 | |
| Eyepiece (doublet lens) | f = 34 mm | 1 |
| Slide show | 1 | |
| Small illumination lamp | 1 | |
| Magnetic base | with holder | 2 |
