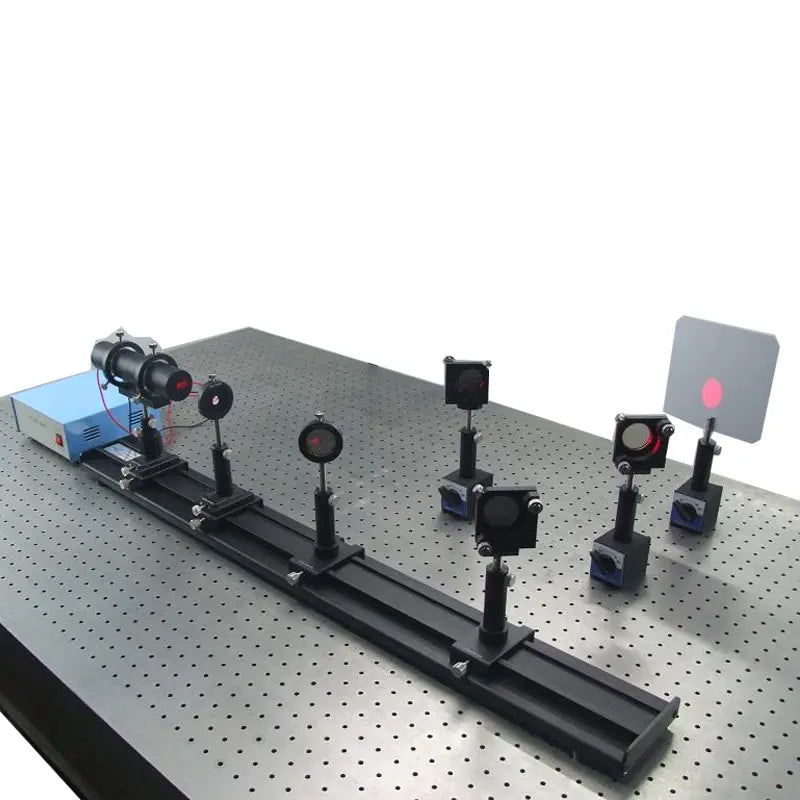

Holography & Interferometry Experiment Kit
Description
Holography and Interferometer Kit is developed for general physics education at colleges and universities. It provides a complete set of optical and mechanical components (including light sources), which can be conveniently constructed to implement five different experiments. Through selecting and assembling individual components into complete experiments, students can enhance their experimental skills and problem solving ability. This optics education kit allows students to perform five experiments to better understand the fundamentals and application of holography and interferometry.
Holography and Interferometer Kit provides a complete set of optical and mechanical components. Through selecting and assembling individual components into complete experiments, students can enhance their experimental skills and problem solving ability. This optics education helps students understand the fundamentals and application of holography and interferometry.
Experiments
1. Recording and reconstructing holograms
2. Making holographic gratings
3. Constructing a Michelson interferometer and measuring the refractive index of air
4. Constructing a Sagnac interferometer
5. Constructing a Mach-Zehnder interferometer
Part List
| Description | Specs/Part# | Qty |
| He-Ne Laser | >1.5 mW@632.8 nm | 1 |
| Aperture Adjustable Bar Clamp | 1 | |
| Lens Holder | 2 | |
| Two-Axis Mirror Holder | 3 | |
| Plate Holder | 1 | |
| Magnetic Base with Post Holder | 5 | |
| Beam Splitter | 50/50, 50/50, 30/70 | 1 each |
| Flat Mirror | Φ 36 mm | 3 |
| Lens | f ‘ = 6.2, 15, 225 mm | 1 each |
| Sample Stage | 1 | |
| White Screen | 1 | |
| Optical Rail | 1 m; aluminum | 1 |
| Carrier | 3 | |
| X-Translation Carrier | 1 | |
| X-Z-Translation Carrier | 1 | |
| Holographic Plate | 12 pc silver salt plates (9×24 cm of each plate) | 1 box |
| Air Chamber with Pump & Gauge | 1 | |
| Manual Counter | 4 digits, counts 0 ~ 9999 | 1 |
Note: a stainless steel optical table or breadboard (1200 mm x 600 mm) with optimal damping is needed for use with this kit
