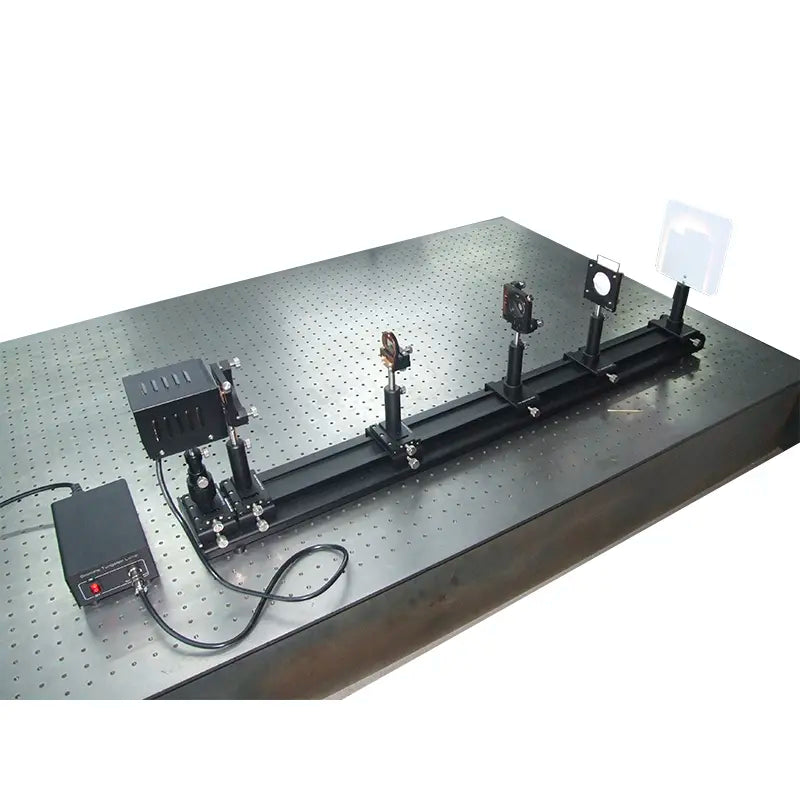

LCP-1 Optics Experiment Kit - Basic Model
Regular price
$4,999.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Optics Experiment Kit - Basic Model
Experiments
1. Measuring The Focal Length Using Autocollimation
2. Measuring The Focal Length Using Bessel’s Method
3. Self-Assembling Slide Projector
4. Fresnel Diffraction of Single Slit
5. Fresnel Diffraction of Single Circular Aperture
6. Young’s Double-Slit Interference
7. Abbe Imaging Principle and Optical Spatial Filtering
8. Pseudo-color Encoding, Theta Modulation and Color Composition

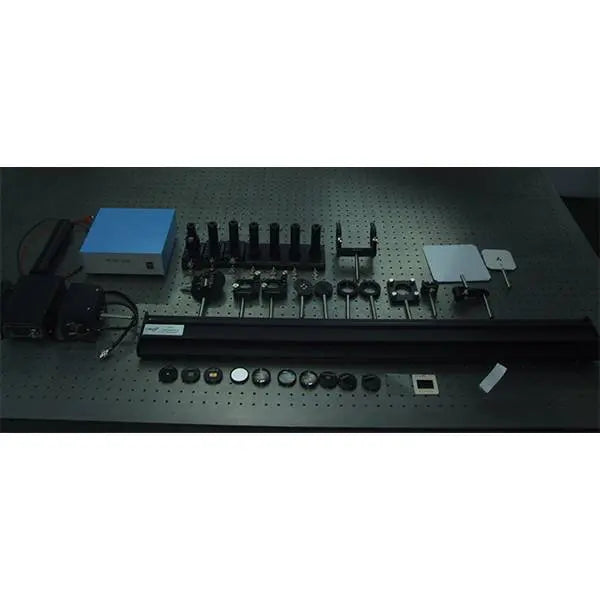

Part List
| Description | Specs/Part# | Qty |
| Mechanical Hardware | ||
| Carriers | General (4), X-trans. (2), X & Z-trans. (1) | 7 |
| Magnetic Base with Holder | 1 | |
| Two-Axis Mirror Holder | 2 | |
| Lens Holder | 2 | |
| Plate Holder A | 1 | |
| White Screen | 1 | |
| Object Screen | 1 | |
| Iris Diaphragm | 1 | |
| Single-Side Adjustable Slit | 1 | |
| Laser Holder | 1 | |
| Paper Clip | 1 | |
| Optical Rail | 1 m; aluminum | 1 |
| Optical Components | ||
| Beam Expander | f ‘= 6.2 mm | 1 |
| Mounted Lenses | f ‘= 50, 150, 190 mm | 1 each |
| Plane Mirror | Φ36 mm x 4 mm | 1 |
| Transmission Grating | 20 L/ mm | 1 |
| 2D Orthogonal Grating | 20 L/ mm | 1 |
| Small Hole | Φ0.3 mm | 1 |
| Transmission Characters with Grid | 1 | |
| Zero-Order Filter | 1 | |
| Theta Modulation Plate | 1 | |
| Double-Slit | 1 | |
| Slide Show | 1 | |
| Light Sources | ||
| Bromine Tungsten Lamp | (12 V/30 W, variable) | 1 |
| He-Ne Laser | (>1.5 mW@632.8 nm) | |
