Klinger Scientific Hall Effect Experiment Complete Set Up


The resistivity measurements of semiconductors cannot reveal whether one or two types of carriers are present; nor distinguish between them. However, this information can be obtained from Hall Coefficient measurements, which are also basic tools for the determination of carrier density and mobility in conjunctions with resistivity measurement.

Working:

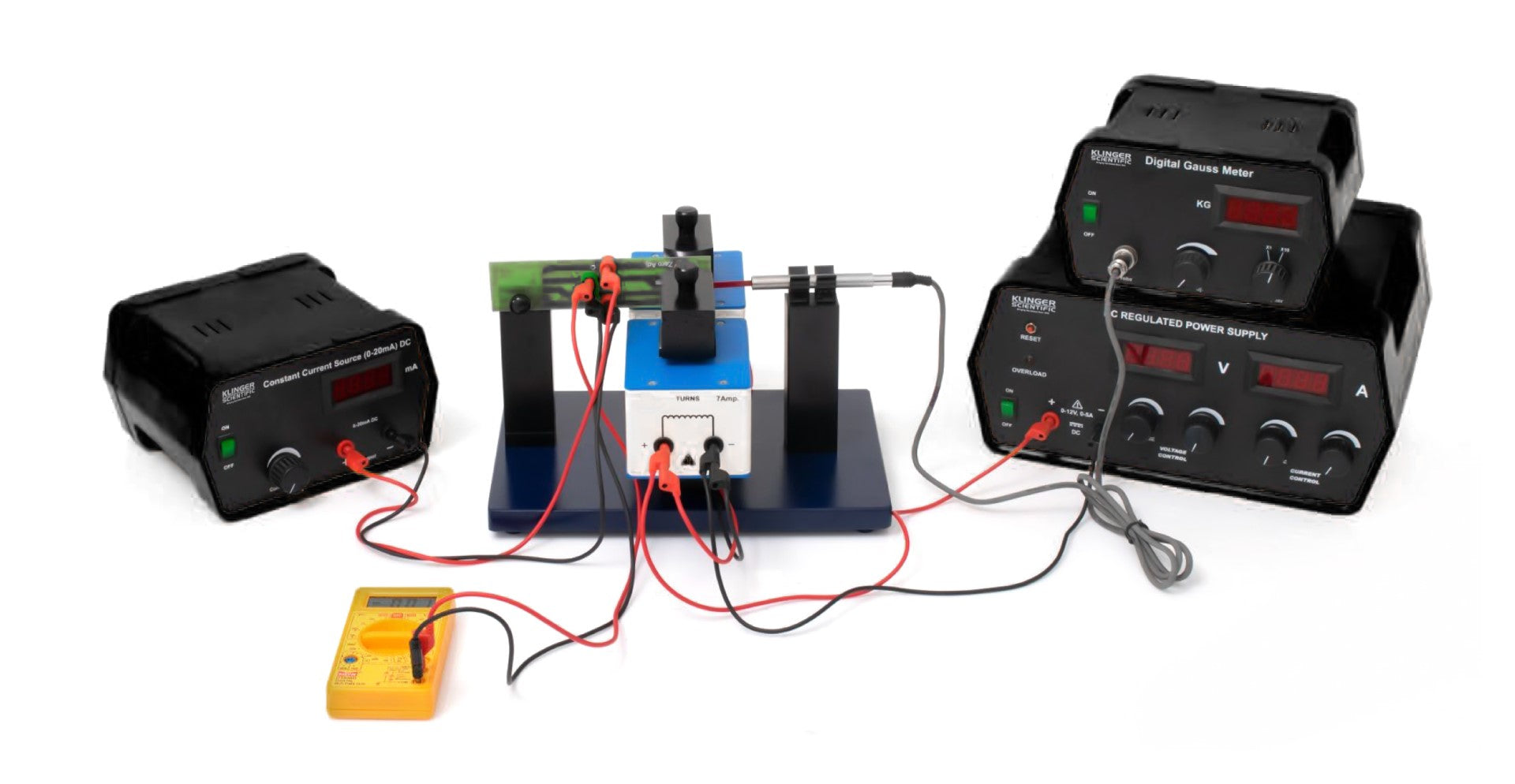

When a conductor through which current is flowing, is placed in the magnetic field, a potential difference is generated between two opposite edges of the conductor in the direction mutually perpendicular to both the field and the conductor. This potential developed is Hall voltage and the phenomenon is called Hall Effect. In the experimental setup, the crystal mounted on PCB is placed perpendicular to the pole pieces. A constant current is passed through the crystal using the constant current source. Magnetic field is produced by electromagnet operated by 0 – 12 V DC, 5 A power supply. Magnetic field intensity is measured by gauss meter with gauss probe. A Hall voltage thus produced is measured by the multimeter.

The following parts are included in Hall Effect Experiment:
KSCI- HP Hall Probe
KSCIAPS Advanced Power Supply
KSCIEMS -Electromagnet Setup
KSCICCPS Constant Current Power Supply
KSCIDGM Digital Gauss Meter
KSCIDM3  3 ½ Digit Multimeter
KSCIHLEF Hall Effect Experiment (Complete)



INSTRUCTIONS FOR USE CLICK HERE
