KSCI-ELDF1 Klinger Scientific Electron Diffraction Tube in Magnetic Field

Regular price $3,625.00

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Klinger Scientific Electron Diffraction Experiment

Objectives:
Thermionic emission of electrons
Deflection of electrons in electron and magnetic field
Estimate of specific change of an electron e/m

Principles:
The electron-beam deflection tube is intended for investigating the deflection of electron beams in electrical and magnetic fields. It can be used to estimate the specific charge of an electron e/m and to determine the electron velocity v. The electron-beam deflection tube comprises an electron gun which emits a narrow, focused ribbon of cathode rays within an evacuated, clear glass bulb. A tungsten filament hot cathode is heated directly and the anode takes the form of a cylinder. The deflection of rays can be achieved electrostatically by means of a built-in plate capacitor formed by the pair of deflection plates or magnetically with the help of the Helmholtz coils (KSCI-HCL) magnetically.

The cathode rays are intercepted by a flat mica sheet, one side of which is coated with a fluorescent screen and the other side of which is printed with a centimeter graticule so that the path of the electrons can be easily traced. The mica sheet is held at 15 degree to the axis of the tube by the two deflecting plates.

Items In Set Up:

1 pc
1 pc
1 pc

Set of 15 Safety Leads

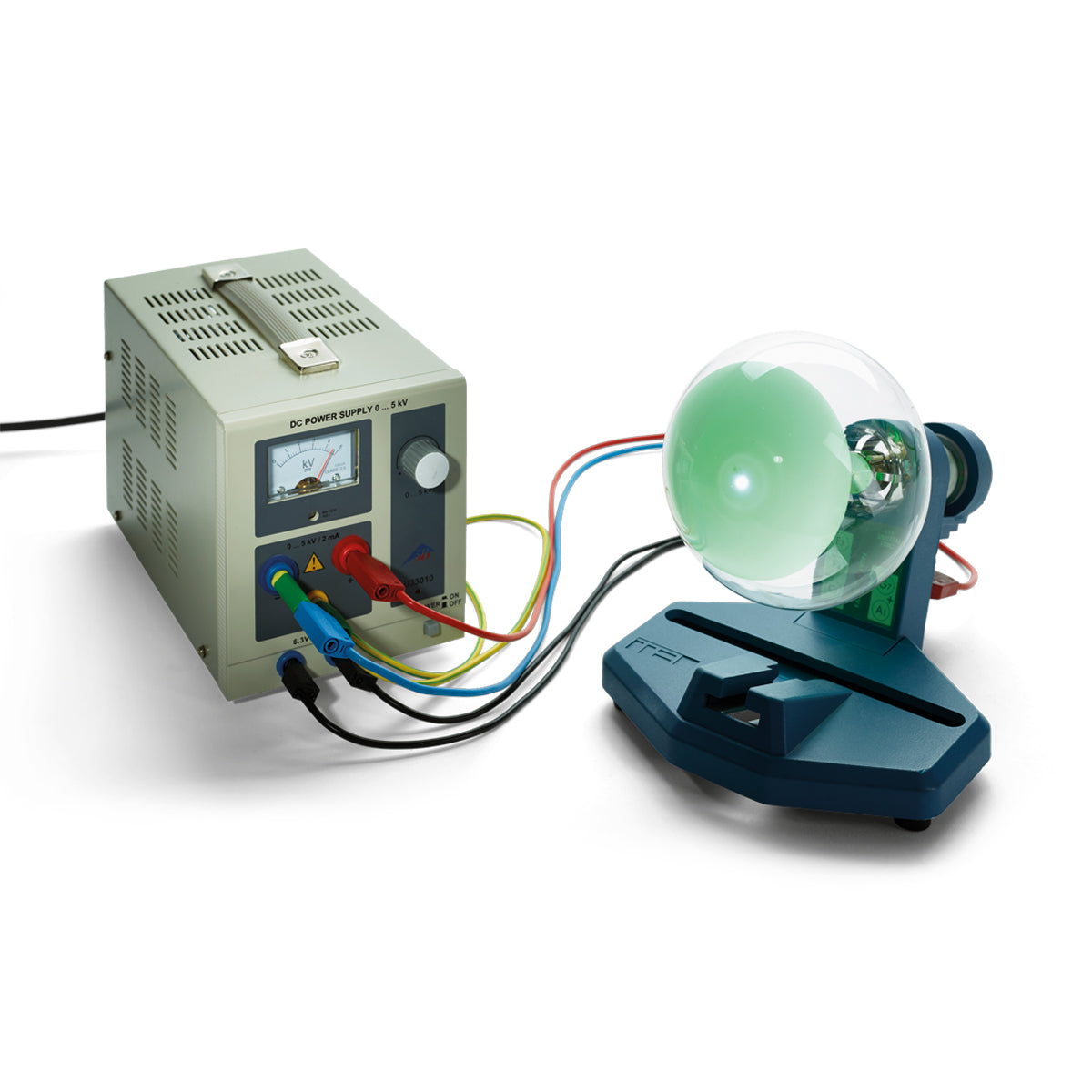

Electron deflection tube
Tube holder
DC power supply

KSCI-EDT
KSCI-TBH
KSCI-HV5000A


 Instructions for use click HERE
