KS8074-2 Wurtzite Large Molecular Model Blue and Gold

KS8074-2 Wurtzite Large Molecular Model Blue and Gold 2 inch Balls

Klinger Molecular Models

The wurtzite crystal structure, named after the mineral wurtzite, is a crystal structure for various binary compounds. It is an example of a hexagonal crystal system. The chemical prototype is conventionally given as ZnS, although mineral wurtzite is a multi-component alloy compound.

The wurtzite crystal structure is referred to by the Strukturbericht designation B4 and the Pearson symbol hP4. The corresponding space group is No. 186 (in International Union of Crystallography classification) or P63mc (in Hermann–Mauguin notation).
Among the compounds that can take the wurtzite structure are wurtzite itself, AgI, ZnO, CdS, CdSe, α-SiC, GaN, AlN, BN and other semiconductors. In most of these compounds, wurtzite is not the favored form of the bulk crystal, but the structure can be favored in some nanocrystal forms of the material.
In materials with more than one crystal structure, the prefix "w-" is sometimes added to the empirical formula to denote the wurtzite crystal structure, as in w-BN.
Each of the two individual atom types forms a sublattice which is HCP-type (short for "hexagonal close-pack"). When viewed altogether, the atomic positions are the same as in lonsdaleite (hexagonal diamond). Each atom is tetrahedrally coordinated.

The wurtzite structure is non-centrosymmetric (i.e., lacks inversion symmetry). Due to this, wurtzite crystals can (and generally do) have properties such as piezoelectricity and pyroelectricity, which centrosymmetric crystals lack.

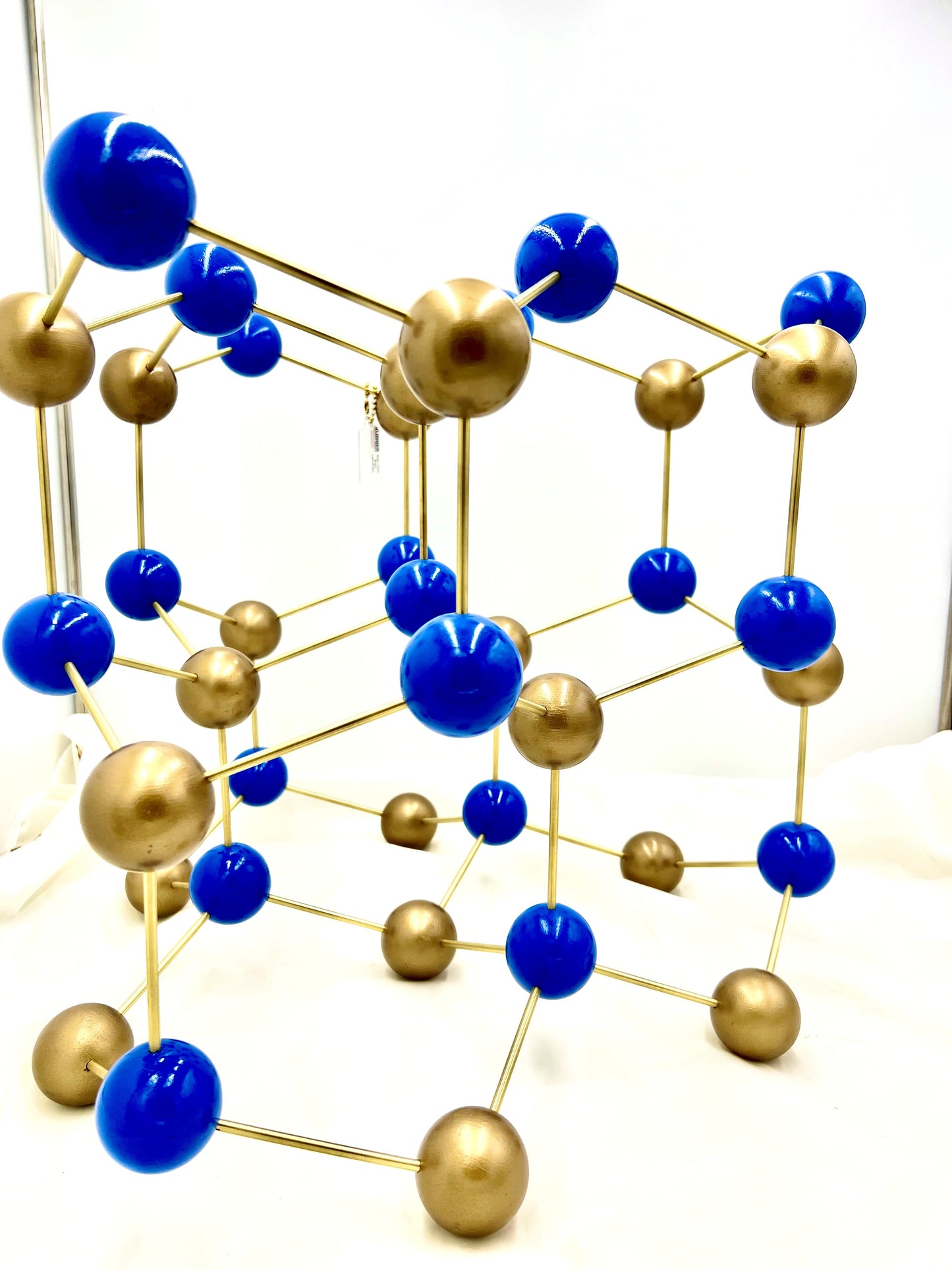

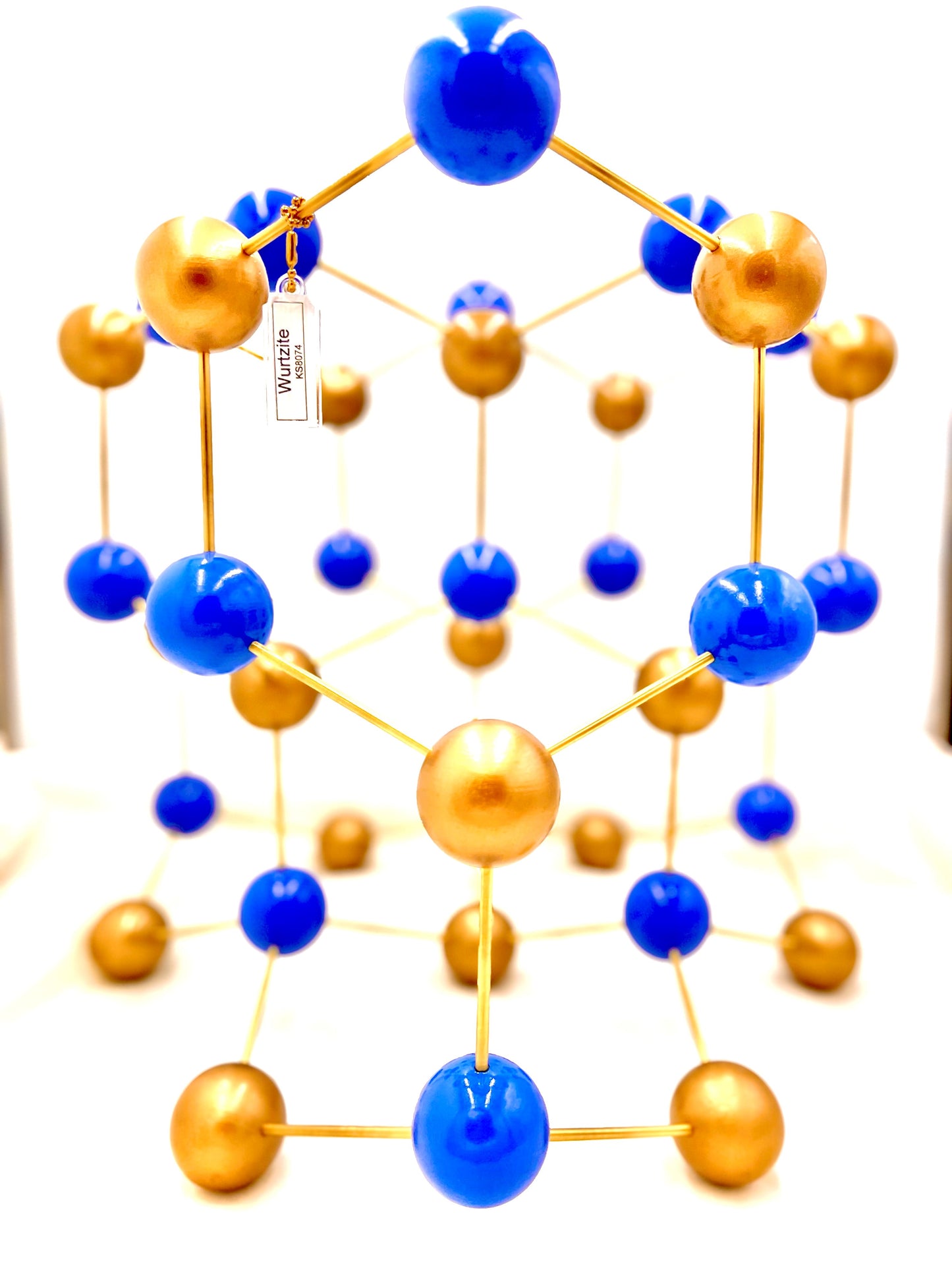

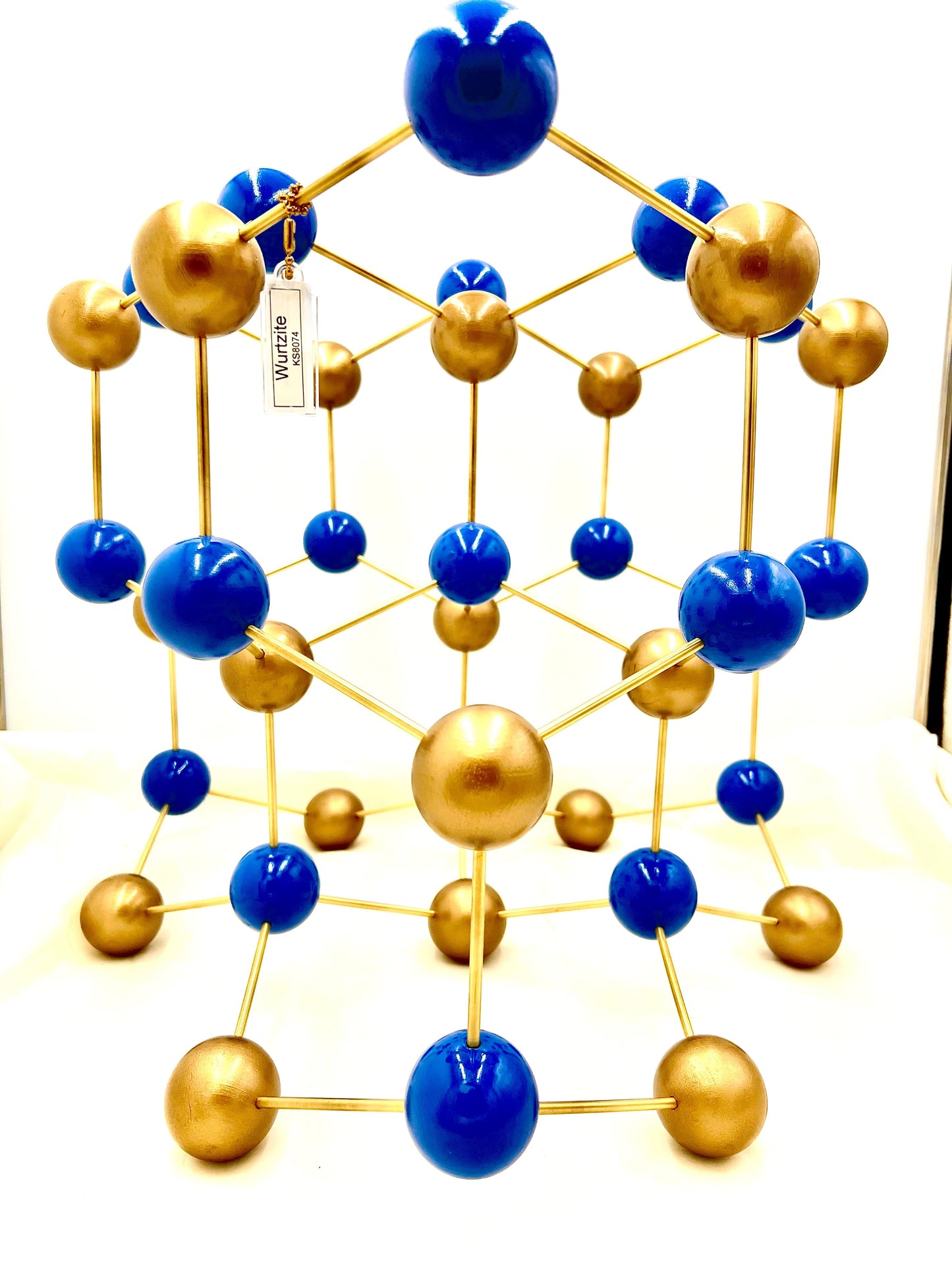

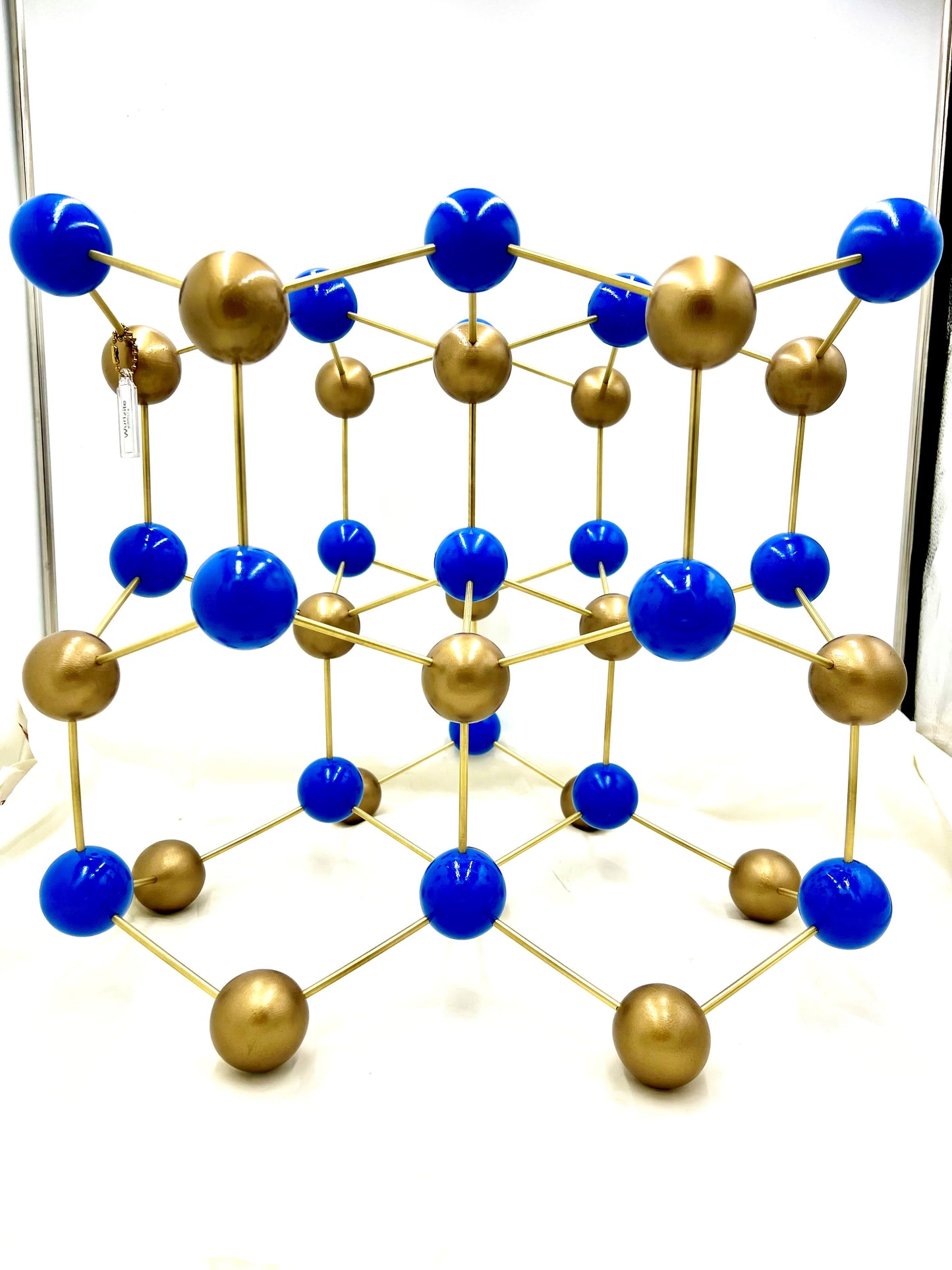

This model is hand made in the USA by Klinger Educational Products. This is a permanent structure. We only use grade A materials. The 1 inch balls are made of hard Maplewood that includes an enameled painted finish. Polished steel rods are used to connect the wooden balls together.

Wurtzite contains 39  -  2 inch balls. Custom cut Brass Spokes -

This is a custom model - 14 day delivery time
