KO4100L - Laser Whiteboard Optics Kit

Regular price $669.00
Regular price Sale $769.00 Sale price $669.00

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Laser Whiteboard Optics Kits


This set has been designed for simple and clear demonstration of the principles of geometrical optics - transmission, reflection and refraction.

The set has turned out to be the best-selling product due to its simple design, user-friendliness and clear demonstration of basic principles of geometrical optics.

Complemented with laser light source (INCLUDED 1- LRB-ELEC-KL) the set improves the quality of teaching and offers the new possibilities in comparison with the classic incandescent lamp.

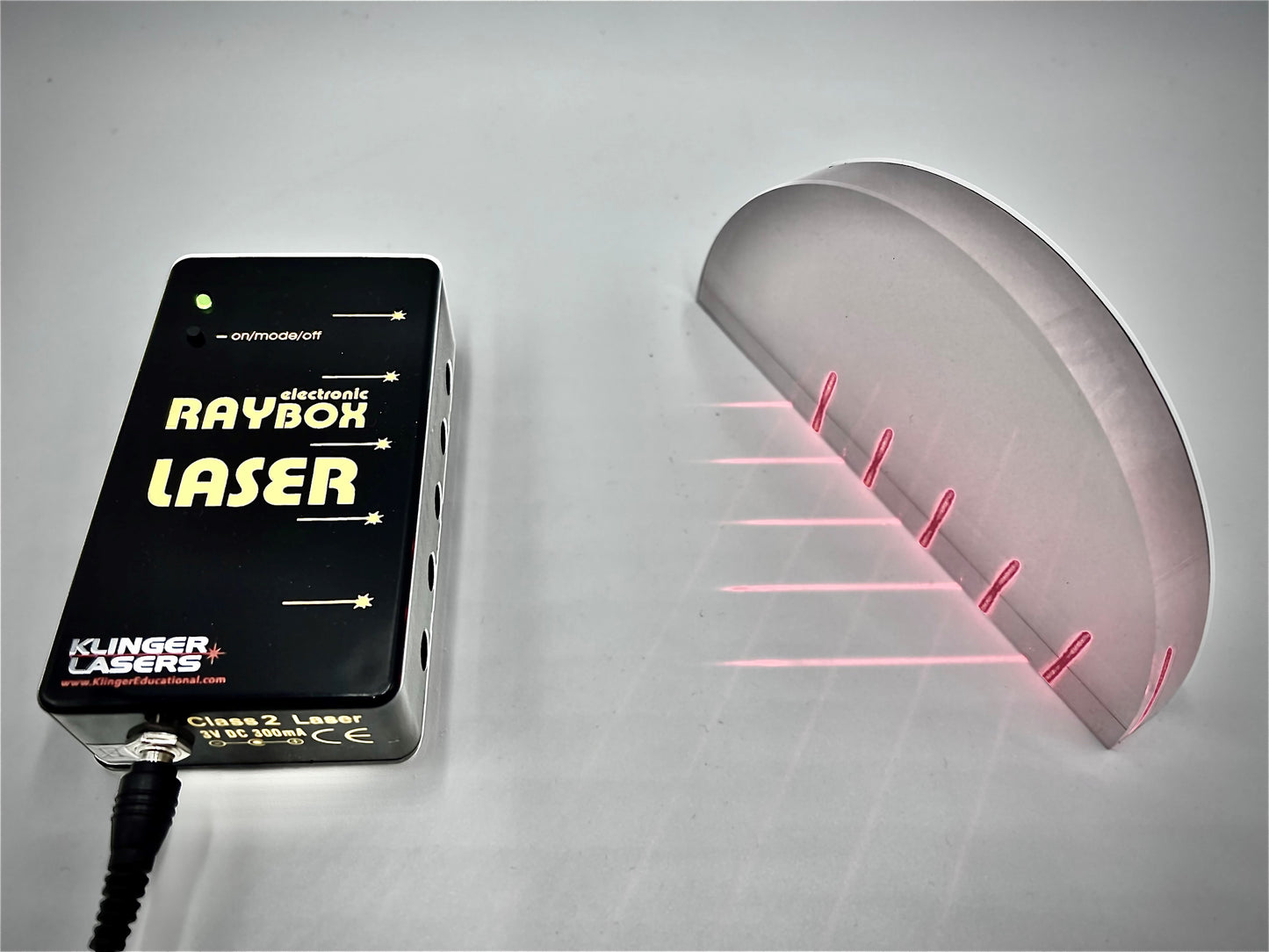

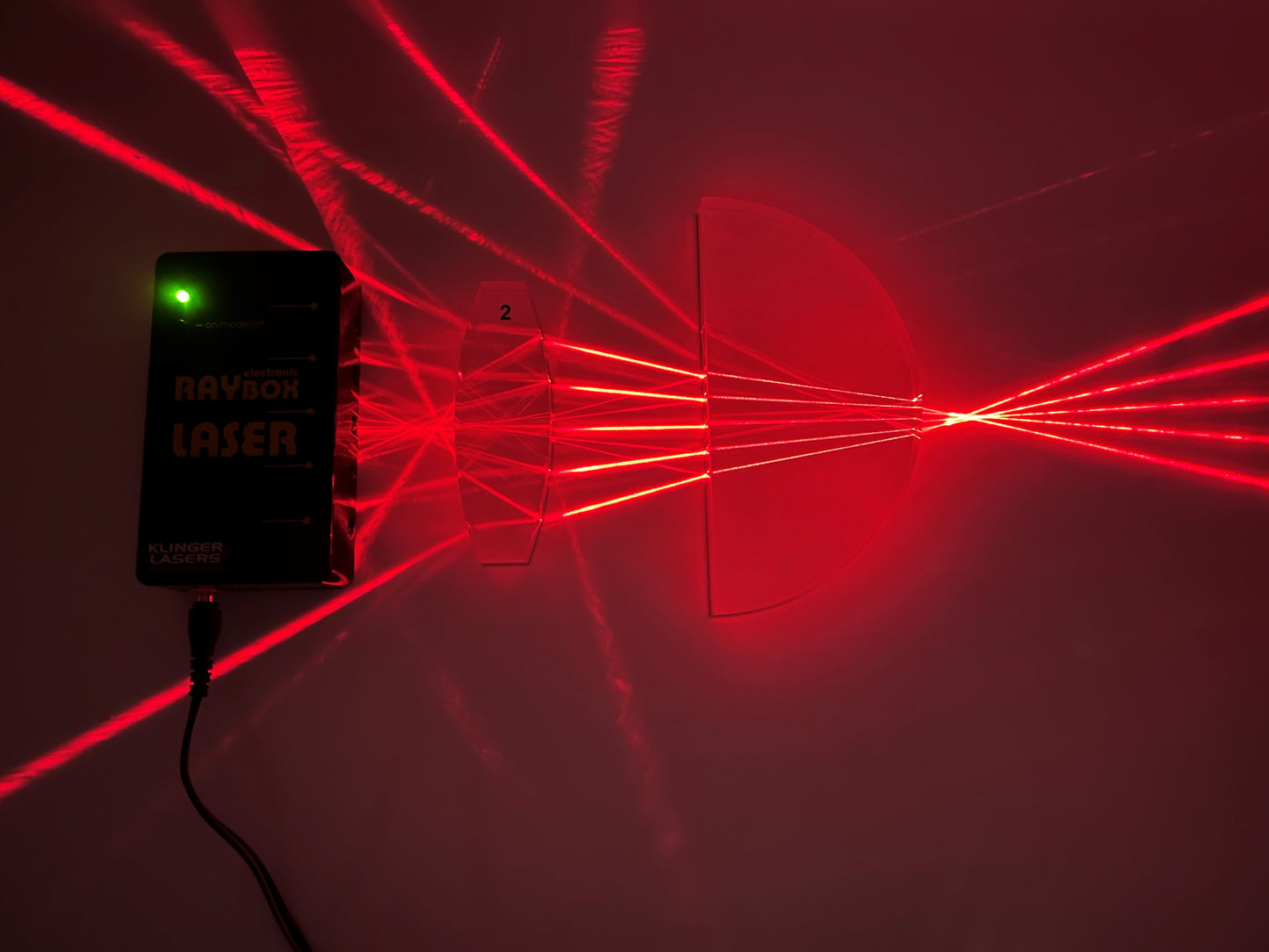

With the use of complementary Electronic Laser Ray Box LRB-ELEC-KL , it is possible to demonstrate most of the elementary optic principles quickly and intuitively. Moreover the demonstration of beams passing through the combination of several optical elements is possible, which enables effective demonstration and modelling of basic optical devices.

Another remarkable advantage arises from very low demand for room light conditions. The KO4100L using the Electronic Laser Ray Box (LRB-ELEC-KL) can be used in standard classrooms without any additional room darkening. It allows very good demonstration and visualization of the following optical effects: transmission of the light through the convex (concave) lens, transmission effect of an optical prism, reflection on the planar convex and concave mirror, refraction of the light, index of refraction values and others.

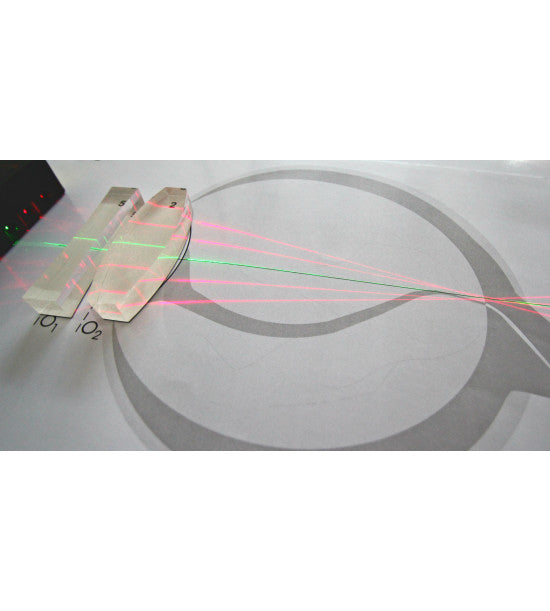

The set also demonstrates the function of healthy, short-sighted and far-sighted vision and the correction of these aberrations by glasses. Furthermore the set demonstrates the function of both, Galileo and Kepler telescopes, as well as photo camera, etc. The effect of the lens spherical aberration and its correction, the demonstrations of absolute reflection in the optical fiber are interesting and easy to demonstrate as well.

All elements are taped with magnetized foil at the bottom, allowing intuitive attachment to a magnetic board The set includes 8 different lenses, 3 types of mirrors, plan-parallel plate, right - angle prism, model of optical fiber and 6 example sheets.

This version does include a magnetic board.

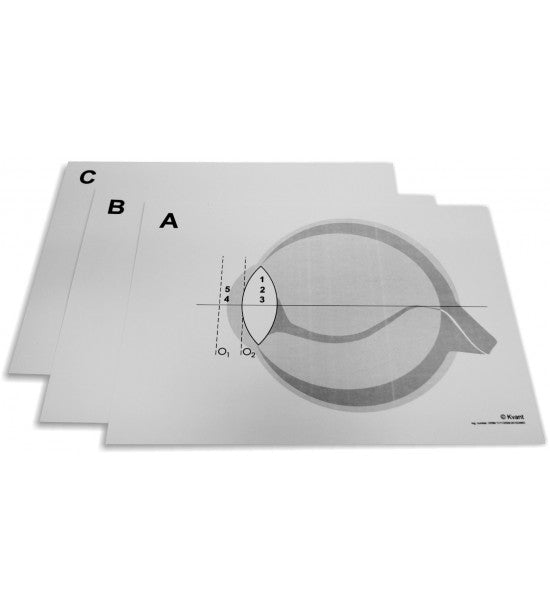

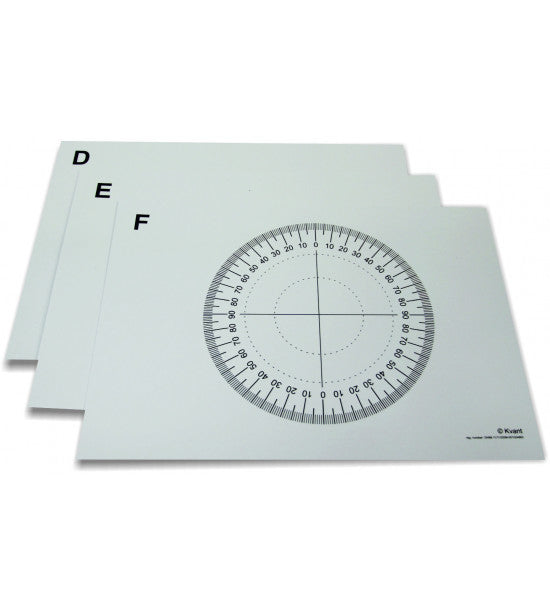

KO4100L contains: • Instruction manual – printed guide with tutorials  • Optical models (14 pcs) – 8 different lenses, 3 types of mirrors, plan parallel plate, right-angle prism, model of optical fiber •  Example sheets (6 pcs) for very simple and quick preparation of demonstration. The demonstration is done quickly if the desired objects are located on assigned positions on the sheet A – model of the human eye B – photo camera C – Galileo telescope D – Kepler telescope E – spherical aberration of a lens, and its correction F – refraction and reflection demonstration sheet X - Significant rays - convex Y - Significant rays - concave

The KO4100L is a compliment to our KO4100M Blackboard Optics Kit -

Klinger created the KO4100M in 1971 and have sold thousands of these set ups worldwide.
