HO-LPS-DP100 Diode-Pumped Solid-State (DPSS) Lasers
Couldn't load pickup availability
Diode-Pumped Solid-State
(DPSS) Lasers
DPSS lasers offer a compact and highly efficient alternative to traditional gas lasers by utilizing a solid-state gain medium that is optically pumped by a diode laser. These systems are widely favored for their reliability, energy efficiency, and performance. Green laser light sources, in particular, have become popular in medical devices, biological research, and laboratory settings. As a primary color, green is not only aesthetically appealing but also highly visible to the human eye. DPSS green lasers are known for excellent output stability, exceptional mode purity and extremely low power consumption. These characteristics make them ideal for precision applications where stability and beam quality are critical.

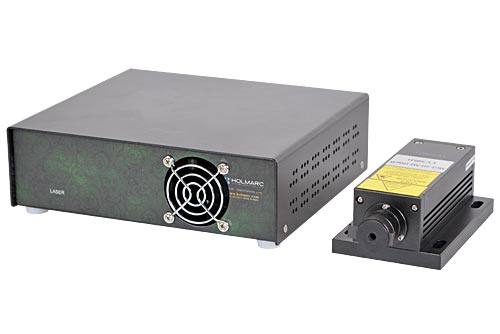

The laser head and power supply are both compact and lightweight, making them easy to handle and integrate into various setups. Built-in mounting holes further simplify installation and ensure secure, reliable placement in laboratory or industrial environments.
Specifications:
| Wavelength (nm) | 532 nm |
| Operating mode | CW |
| Output power (mW) | 100 mW |
| Power stability (rms, over 4 hours) | < 3 % |
| Transverse Mode | TEMoo |
| M2 factor | < 1.2 (< 1.1 optional) |
| Beam diameter at the aperture 1/e2 (mm) | ~ 1.2 |
| Beam divergence, full angle (mrad) | < 1.2 |
| Polarization ratio | > 100:1, Horizontal ±5 degree (Vertical Optional) |
| Warm-up time (minutes) | < 10 |
| Beam height from base plate | 24. 8 mm |
| Pointing stability after warm-up (mrad) | < 0.05 |
| Operating temperature | 10 ~ 35℃ |
| Power supply | 90 - 264V AC or 5 VDC |
| Expected lifetime (hours) | 5000 hrs |
Applications:
| Laser Alignment |
| Scanning |
| Nondestructive Testing Devices |
| Holography |
| High Resolution Display |
| Underwater Imaging & Surveying |
| Fluorescence excitation |
| Optical Communication |
| Flow Cytometry |
| Medical & Chemical Devices |
Schematic:
