HO-ED-INT-12 Mach Zehnder Interferometer
Couldn't load pickup availability
Mach Zehnder Interferometer

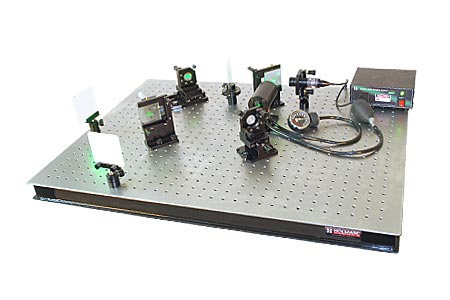

Interferometer is built by assembling the building blocks on a breadboard as per desired optical layout. Optics and laser head are held using kinematic mounts with two axis fine adjustment facility. Precision alignments for obtaining the interference fringes are done using kinematic mounts.
One of the simplest experiments using the interferometer is measurement of index of refraction of air with an airtight test cell placed in one of the optical arms of the interferometer. No other factor such as convective airflow, should be present, that can generate optical path differences. The flexibility in fringe localization is one of the important advantages of the mach zehnder interferometer over other interferometers. Although many Mach-Zehnder interferometers use a rectangular arrangement, parallelogram arrangements are also possible. Vibration isolated supports for optical table is optional.
Experiment:
To determine wavelength of laser beam
The wavelength of laser is calculated by,
λ = ( 2d / N ) Δ
Δl = n. λ / 2
where 'd' is the change in position that occurs for 'N' fringes to pass and Δ is the calibration constant of the micrometer.
To find refractive index of a transparent material
The light passes through a greater length of glass as the plate is rotated. The change in the path length of the light beam as the glass plate is rotated and relates the change in path length with the laser beam through air.
The refractive index of glass slide,
N = ( 2t - Nλ ) ( 1 - cosθ ) / 2t ( 1 - cosθ ) - Nλ
Where t is the thickness of the glass slide, N is the number of fringes counted, λ is the wave length of light used and θ is the angle turned for N fringes.
To study refractive index change in air under different pressures and determine refractive index of air
When a piece of material of thickness d is placed in one arm of the Michelson Interferometer, the change in optical path length is given by 2dn where n is the difference in refractive index between the sample and the material it replaced (usually air). In other words, 2d (nm - nair ) / λ extra wavelengths are introduced if air is replaced by a sample of refractive index nm.
Features:
| Kinematic mounts are used for fine movement of optical components |
| Diode laser is used as light source |
| All materials used in this setup are of laboratory grade with corrosion resistance |
| The optics used in this device are of research quality |
Drawings:
Related Topics:
| Interference of light |
| Constructive Interference |
| Destructive interference |
| Wavelength of light |
| Refractive index |
Scope of Delivery:
Thumb Screws
Allen keys
Instruction Manual
