HO-ED-INT-01 Newton's Rings Apparatus

Regular price $1,450.00

Newton's Rings Apparatus

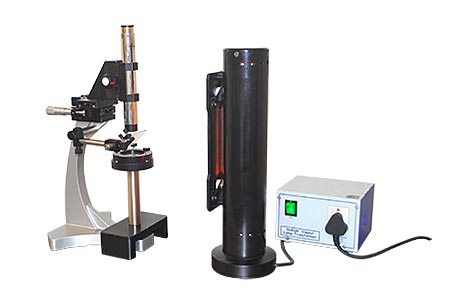

In this apparatus, light from a sodium lamp falls on the glass plate, inclined at 45 degree to the horizontal, get reflected, and then falls normally on the convex lens placed over the glass plate. A system of bright and dark concentric circular rings are observed through a microscope, arranged vertically above the glass plate. The microscope is properly focused so that alternate bright and dark concentric circular rings are observed more clearly. Measurements are taken from a micrometer driven traveling microscope, which is integrated with this apparatus.

Experiment:

To determine the wavelength of Sodium light and LEDs ( Red, Blue, Green, Yellow ).

Let Dm and Dm+k be the diameters of the mth and (m+k)th dark ring respectively. Then,

D2m  =  4 mRλ

D2m+k  =  4 (m+k) Rλ

D2m+k  -  D2m  =  4 kRλ

λ  =  [D2m+k  -  D2m] / 4kR

D2m  =  4 mRλ

where λ is the wavelength used and R is the radius of curvature of the lens.

To find the refractive index of liquid.

Refractive index of liquid,

( n  =  mλR / r^2 )

where, m order of the fringe, R Radius of curvature of the lens

λ wave length of light, r radius of the ring

To find the diameter of thin wire or thickness of a thin strip of paper using air wedge method.

The diameter or thickness of the wire,

d  =  lλ / 2β

λ is the wavelength of the light

β is the bandwidth

l is the diameter of the wire or thickness of a thin strip of paper from the line of contact of the two plates of the air wedge.

Specifications:

Travelling Microscope
    Magnification     10 x
    Micrometer travel     25 mm
    Least count     0.01 mm

Features:

   Sodium vapor lamp and spectral LED's are used as light sources
    Traveling microscope with precision micrometer is used for accurate measurements
    The optics used in this device are of research quality
    All materials used in this setup are of laboratory grade and are corrosion resistant

Drawings:

Scope of Supply:

Travelling Microscope with Rigid Base
Lens Holder with Rigid Base
LED Mount with Rigid Base
Plano Convex Lens
Plano Convex Lens
Optical Flat
Beam splitter Plate
Sodium vapor lamp with Power Supply
LED's with Power supply
