Apparatus for the study of Biot-Savart's Law

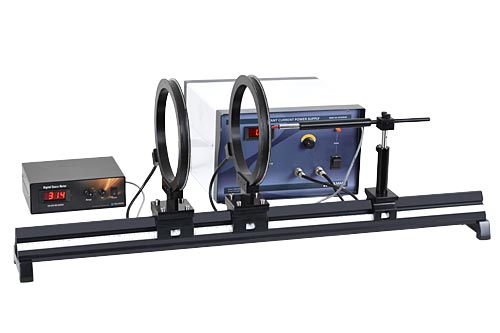

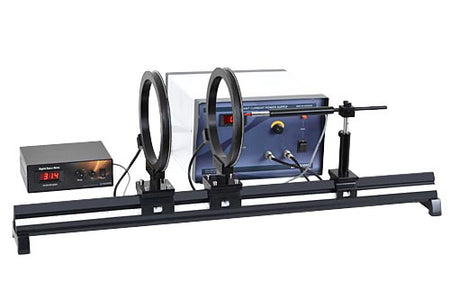

Holmarc’s Apparatus Model No: HO-ED-EM-05 has been designed for the study of Biot - Savart’s law. This law can be applied practically to calculate the magnetic field produced by an arbitrary current distribution. It gives fundamental quantitative relationship between an electric current and the magnetic field it produces. The law is also valid for a current consisting of charges flowing through space.
The magnetic field along the axis of wire loops and coils of different dimensions is measured using a Gauss meter. The relationship between the maximum field strength and the dimension is investigated and a comparison is made between the measured and the theoretical effects of position. The Gauss meter probe is mounted on a rail with a scale. It can be moved smoothly and precisely for measurement of magnetic field along the center of the coils. In general, any current loop has a magnetic field and thus has a magnetic dipole moment. This helps to explain why some materials exhibit strong magnetic properties.
Experiment:
To study the variation of magnetic field due to Helmholtz coil and single coil carrying current
To determine the magnetic field constant
To measure the magnetic flux density in the middle of various wire loops using the gauss meter
Features:
| Digital Gauss meter gives a direct reading of magnetic field. |
| Center to center distance of the Helmholtz coil can be varied. |
| Precise and accurate measurements |
| Gauss probe holder offers excellent rigidity and positioning accuracy. |
| Specially designed modular set up |
Schematic:
Related Topics:
| Biot - Savart's law |
| Helmholtz coils |
| Magnetic moment |
| Magnetic flux density |
| Single coils |
Helmholtz Coil
The Helmholtz Coil consists of two coils that have the same radius and mounted on a base to provide a uniform magnetic field between the coils. The base has a slot that allows the coils to be spaced apart at any distance from 3 cm to 20 cm (center-to-center distance). The separation for Helmholtz coils is marked on the base.
Single Coil
For a single coil of radius r with N turns carrying current I, the magnetic field due to the coil at a distance x along the axis passing through the center of the coil and perpendicular to its plane can be calculated using the Biot - Savart Law . Magnetic field value is measured for different currents.
Scope of Delivery:
Instruction Manual
