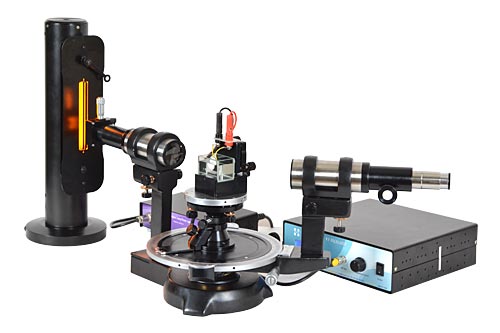

Ultrasonic Diffraction using Goniometer

The ultrasonic waves generated by the transducer travels through the medium (liquid) and get reflected at the side by side (flat glass plate) of the cell. The incident and reflected waves interfere and a stationary / standing wave pattern is formed. Piezo electric crystals are mounted using a kinematic holder at the center of Goniometer. This helps to direct the sodium light through the liquid and then to the detector/eyepiece conveniently by using the spectroscopic arm design. The diffraction pattern is changed by replacing the crystals like 3 MHz to 5MHz.The velocity of ultrasonic waves in liquids can be calculated from this experiment.

Experiment:

   To find the velocity of ultrasonic wave in liquids

   To find the bulk modulus of the given liquid

   To find the compressibility of the liquid

Specifications:

Video:

Click HERE for Video
