C3.4.4.1 Electron Spin Resonance on DPPH

Regular price $8,461.00 $0.00 Unit price per

Electron Spin Resonance on DPPH

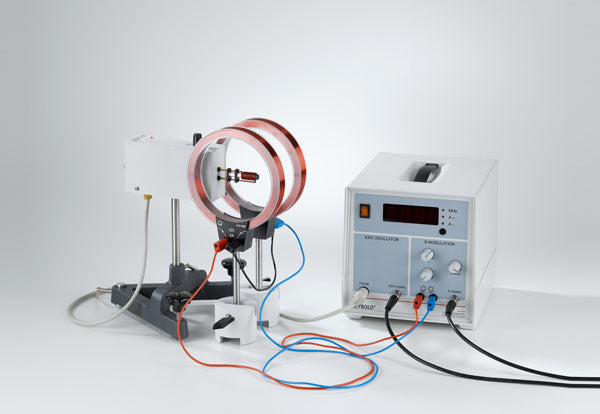

In experiment C3.4.4.1, electron spin resonance is demonstrated on diphenyl picrylhydrazyl (DPPH). DPPH is a radical in which a free electron occurs on a nitrogen atom. In the experiment, the resonance frequencies can be predefined continuously between 13 and 130 MHz The aim of the assessment is to determine the g factor.

Components of experiment:

1 514 55 ESR basic unit
1 514 571 ESR supply unit
1 555 604 Pair of Helmholtz coils
1 575 214 Oscilloscope 30 MHz, two-channel, analogous
2 501 02 BNC cable, 1 m
3 300 11 Saddle base
1 501 23 Connecting lead, 32 A, 25 cm, black
1 501 25 Connecting lead, 32 A, 50 cm, red
1 501 26 Connecting lead, 32 A, 50 cm, blue
