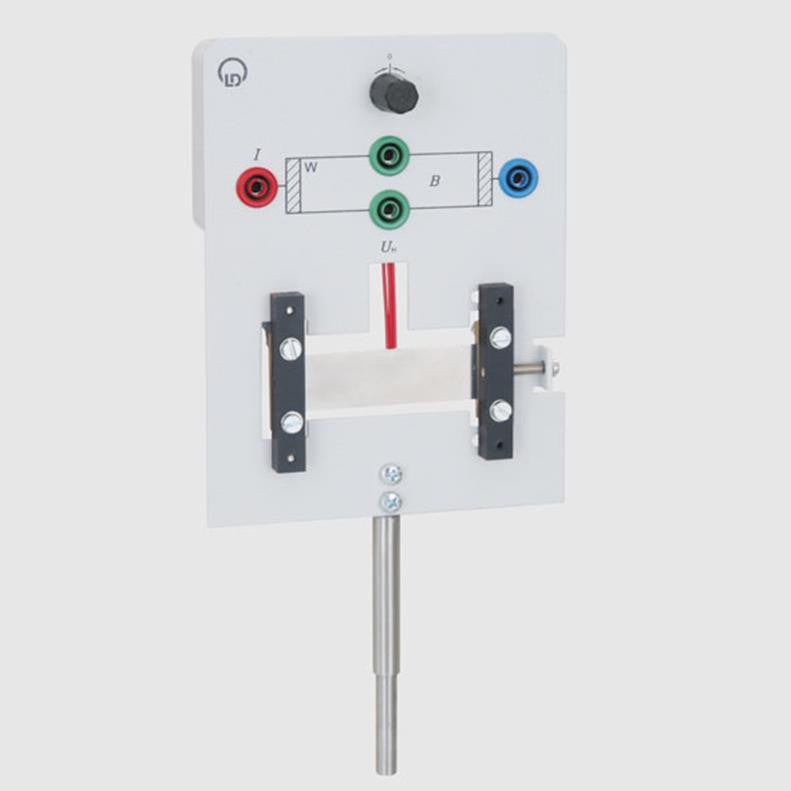

Hall Effect Apparatus (Tungsten)

In holder, with permanently mounted tungsten strip, socket pairs for tapping the Hall voltage, plus rotary potentiometer for correcting the zero point. On stand rod, for mounting in U-core (562 11).

Technical Data:
• Necessary current: approx. 20 A DC
• Necessary magnetic field: 0.1 ... 0.6 T
• Hall voltage: max. 25 x 10-6
• Strip thickness: 5 x 10-5 m
• Dimensions:
holder: 13 cm x 17 cm x 3.5 cm
stand rod: 9.5 cm x 0.7 cm dia.
