Leybold LD Didactic

56215 Coil - 1,000 Turns

$255.00

Use this text to encourage communication or promote sharing on social networks.

You can also add links

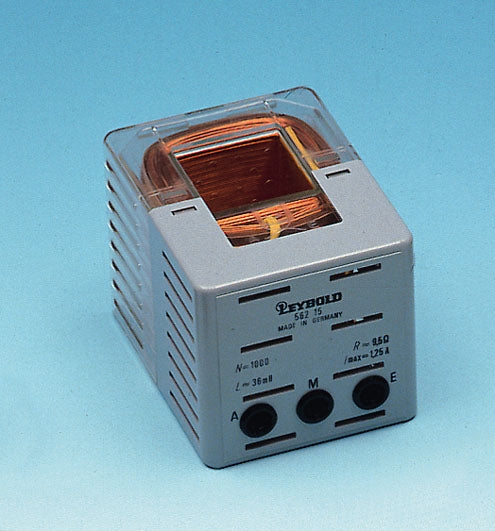

Coil - 1,000 Turns

Low-voltage coil. Can experience both low voltage and high voltage when used as secondary coil, therefore not suitable for student experiments.



Technical Data:

  • Casing:
    Impact-resistant plastic of high mechanical and thermal resistance, rear made of transparent plastic so that the winding can be seen, with square opening for slipping the coils over the U-core (562 11)
  • Electrical connections: via safety sockets (all coils)
  • Centre taps
  • Coil ratings:
    Printed on each coil casing are the number of turns, DC resistance, inductance and max. continuous current.
  • Max. current:
    May be considerably exceeded for short periods.
  • Number of turns: 1000
  • Max. continuous current: 1.25 A
  • DC resistance: 9.5 Ω approx.
  • Inductance without iron core: 0.0036 H
  • Wire diameter: 0.7 mm

INSTRUCTIONS FOR USE PLEASE CLICK HERE
