555870 Neon - Franck Hertz Tube
555870 Neon - Franck Hertz Tube
Leybold LD Didactic

555870 Neon - Franck Hertz Tube

Regular price $1,845.00 $0.00 Unit price per

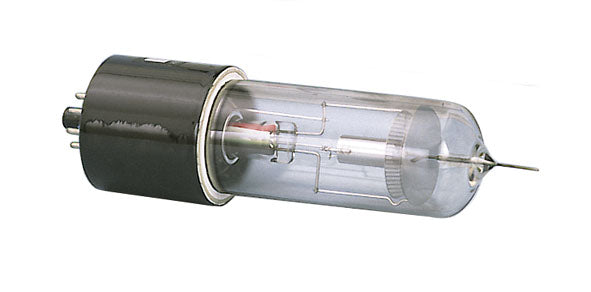

Neon - Franck Hertz Tube

For easy demonstration of the discontinuous release of energy by free electrons upon collision with neon atoms, and the discreet energy states in neon atoms, as well as for determining the first excitation energy level. The Franck-Hertz curve is plotted either point-by-point with indicating instruments or continuously by means of a recorder or CASSY. The relaxation of the neon atoms occurs partly via transitions in the visible region. Therefore, light bands corresponding to the various states of excitation can also be observed.



Technical Data
• Filament voltage: 6.3 V/0.25 A
• Grid voltages: 0 ... 5 V DC
• Accelerating voltage: 0 - 80 V DC
• Decelerating voltage: 0 - 10 V DC
• Beam potential: 0 - 80 V DC
• Neon filling: approx. 10 hPa
• Excitation energy Ne: 16 - 18 eV

INSTRUCTIONS FOR USE PLEASE CLICK HERE
