Electric Oven For 115V

Same design as 555 81, but for 115-V-mains connection.

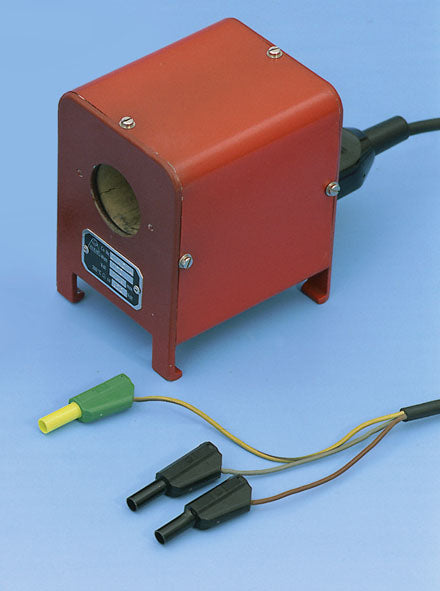

For heating the black body accessory (389 43), the semi-conductor and noble metal resistors (586 80/586 821), the mercury Franck-Hertz tubes (555 854) and for other experiments in which bodies with a low coefficient of expansion are to be maintained at a constant temperature. Electrically heated, ceramic oven with cylindrical heating chamber and hole for thermometer or temperature sensor.

Additionally required
Measuring junction box 502 05 Rheostat, 110 Ohm 537 23 Safety connecting leads

Technical Data:

• Temperature: max. 600 °C
• Dimensions of heating chamber: 10 cm x 37 mm diam.
• Connection: max. 230 V, via earthed leads with 4-mm safety plugs
• Power consumption: max. 200 VA
• Dimensions: 11 cm x 9 cm x 13 cm
• Weight: 1.4 kg
