555604 Pair Of Helmholtz Coils
555604 Pair Of Helmholtz Coils
Leybold LD Didactic

555604 Pair Of Helmholtz Coils

Regular price $875.00 $0.00 Unit price per

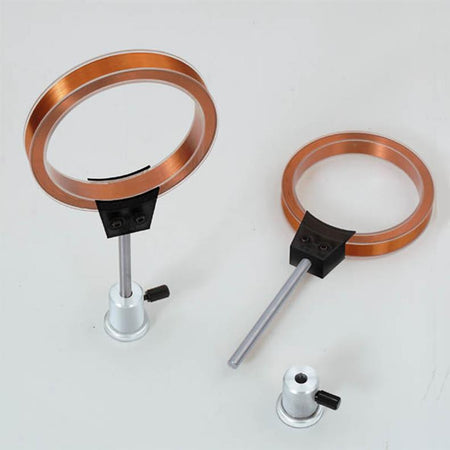

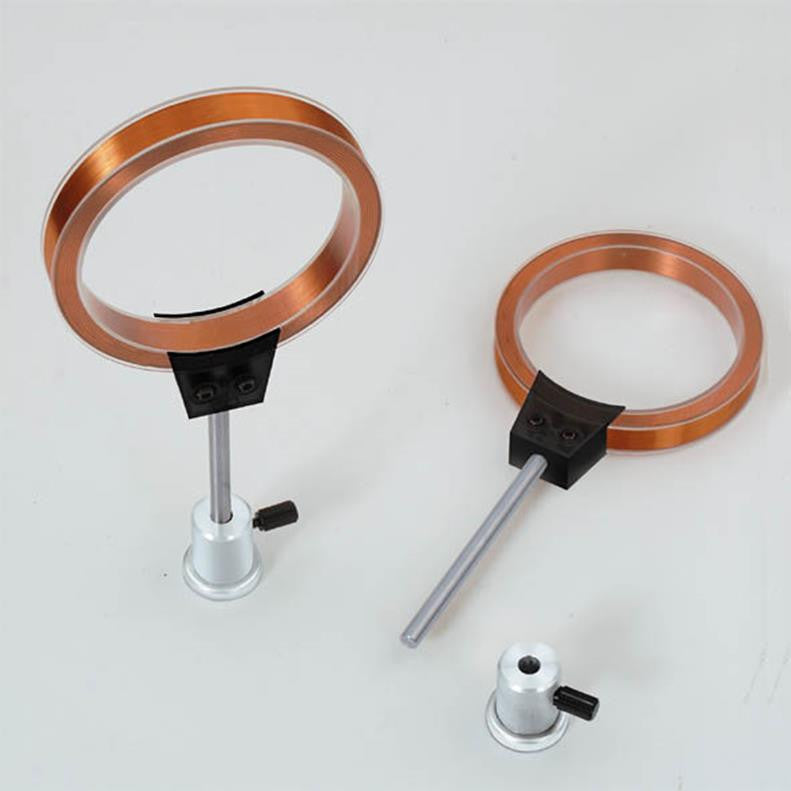

Pair Of Helmholtz Coils

To produce an homogenous magnetic field, e.g. in experiments with the LD demonstration tubes. Coils on a support with a retort stand rod, including 2 magnetic feet to provide attachment to the tube stand.



Technical Data:
• Number of turns: 320 each
• DC resistance: approx. 6 Ω
• Load capacity: 2 A
• Connections: two 4-mm-sockets per coil
• Coil diameter: 13.5 cm
• Stand rod: 130 mm x 10 mm Ø
