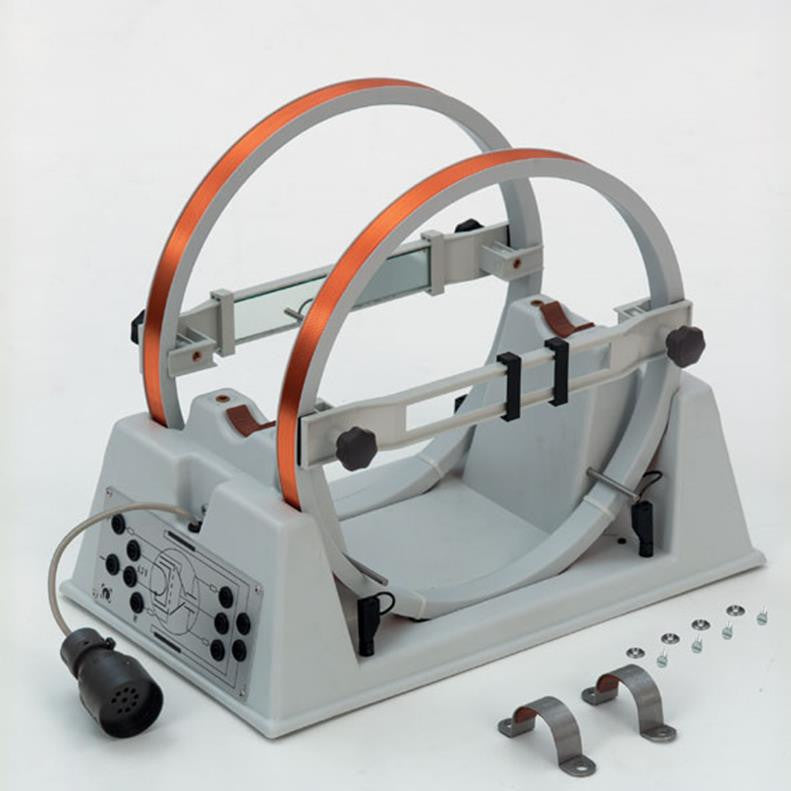

Helmholtz Coils with Holder and Measuring Device for Fine Beam Tube

For generation of a homogeneous magnetic field for the e/m determination with the fine beam tube (555 571). The holder supports the fine beam tube and provides the electrical connections to the tube. A measuring device with mirror and two riders for measuring the diameter of the electron beam when it is made to follow a circular path is included.

Technical Data

• Pair of Helmholtz coils:
Number of turns: 130 on each coil
Coil radius r: 150 mm
Distance between the coils: 150 mm
Max current ls through the coils: 2 A
• Holder:

Dimensions: 26 cm x 42 cm x 40 cm
• Multi-core cable with plug for connection to the fine beam tube
• Connecting panel with circuit diagram and 4-mm sockets
• Weight: 2 kg
