524442 Microphone M
524442 Microphone M
Leybold LD Didactic

524442 Microphone M

$285.00

Use this text to encourage communication or promote sharing on social networks.

You can also add links

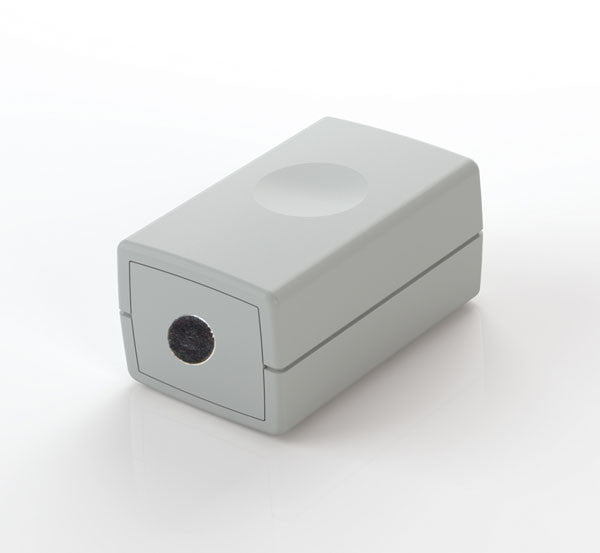

Microphone M

For measuring noise level, frequency and the voltage of acoustic signals with Mobile-CASSY 2 (524 005/524 005W).

Technical Data:

  • Measuring variables: Voltage, frequency, sound level
  • Frequency range: 50 ... 20,000 Hz
  • Sound level ranges: 40 ... 100 dB, 60 ... 120 dB (also automatically)
  • Sampling rate: maximum 500,000 values/s
  • Connection: Mini-DIN
  • Connection cable length: 1.2 m

INSTRUCTIONS FOR USE PLEASE CLICK HERE
