Leybold LD Didactic
524431 Light barrier M
524431 Light barrier M
Couldn't load pickup availability

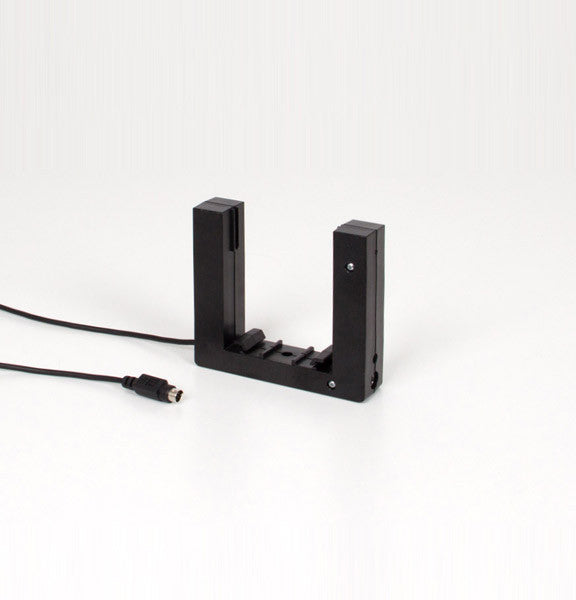

Light barrier M
Cascadable photoelectric barrier for measuring period durations, travelling time, paths and velocities on the student track or during free fall with Mobile-CASSY 2 (524 005/524 005W).Recommended accessories • Spoked wheel (524 4322) For fixing on a light barrier M for continuous path and velocity measuring.
• Start jig, trolley (524 4323) For fixing on a light barrier M for automatic start of the time measuring when starting the movement on a track (instead of a holding magnet).
• Start jig, ball (524 4324) For fixing on a light barrier M for automatic start of the time measuring when starting a free fall of a ball (instead of a holding magnet).
Technical Data • Time resolution: 100 ns • Path resolution: 5 mm when utilizing the spoked wheels • Cascading: up to 5 photoelectric barriers (e.g. for travelling time measuring or up to 5 sequential relocity measurements on one track) • Fixing: locking in place under the student track or via M6 threads • Connection cable length: 1 m
INSTRUCTIONS FOR USE PLEASE CLICK HERE
