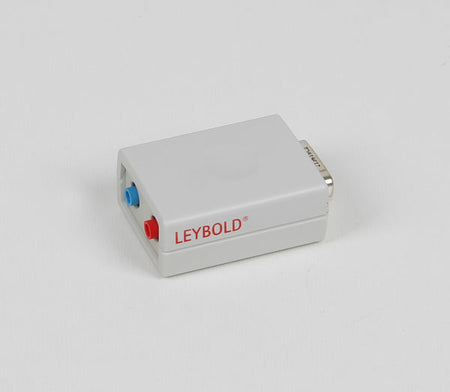

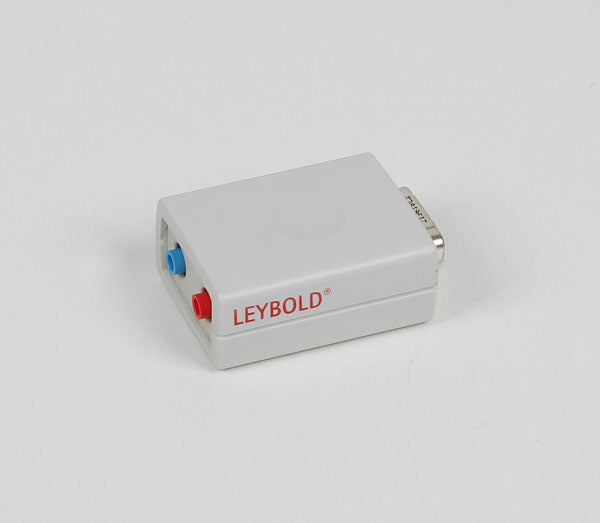

Leybold µV Sensor S

For measuring very low voltages (e.g. Hall voltages, thermocouples, induction coils) using CASSY.
This sensor is not supported by CASSY Lab 1 anymore. CASSY Lab 2 is available as an upgrade

• Measuring ranges: ±100/±300 µV, ±1/±3/±10/±30/±100 mV
• Measuring accuracy: 2%
• Offset error: < 0.5%
• Input resistance: 100 kΩ
• Cut-off frequency: approx. 1 Hz
• Max. excess voltage: 100 V
• Connection: 4-mm sockets
• Dimensions: 70 mm x 50 mm x 25 mm
• Weight: 100 g

INSTRUCTIONS FOR USE CLICK HERE
