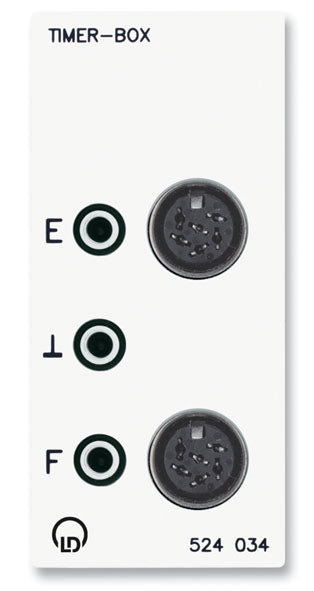

Leybold Timer Box Sensor

Sensor box with two TTL and light barrier inputs for CASSY.

• Input E can be used as a counter, timer and frequency input
• Both inputs E and F can be used as timer inputs for measuring the time between selected edges (e.g. measuring the transit time from E to F, measuring the obscuration time at E and/or F)

• Time resolution: 1 µs
• Connections: two 6-pole sockets (for 501 16) and three 4-mm sockets
• Dimensions: 42 mm x 92 mm x 30 mm
• Weight: 0.1 kg
