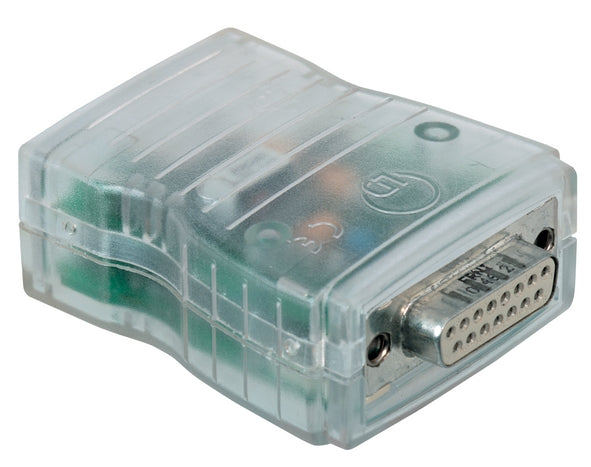

Pocket CASSY

Interface for recording measurement data.

• For connection to the USB port of a computer.
• Supports all sensors and sensor boxes in the CASSY family.
• Up to 8 Pocket-CASSY modules can be used simultaneously at a computer via USB hubs.

TECHNICAL DATA:

• Analog input at sensor connector site
  Resolution: 12 bit
  Scanning rate: max. 7,800 values/s
  Number of measurement quantities: max. 8 simultaneously (depending on the sensor box) per Pocket-CASSY
  Measurement quantities and measuring ranges change automatically when a sensor box has been attached (automatic sensor box detection). For further details regarding the possible measuring ranges see sensors.
• 2 timer inputs at sensor connector site (e. g. for GM box or timer S)
  Counting frequency: max. 10 kHz
  Time resolution: 1 µs
• Connections:
  CASSY sensor connector site (15-pole)
  USB port (compatible with USB 1.x and 2.0, full speed)
• Power supply: via USB port (500 mA)
• Dimensions: 50 mm x 25 mm x 60 mm
• Weight: 0.1 kg

SCOPE OF DELIVERY:

• Pocket-CASSY
• USB cable

INSTRUCTIONS FOR USE HERE
