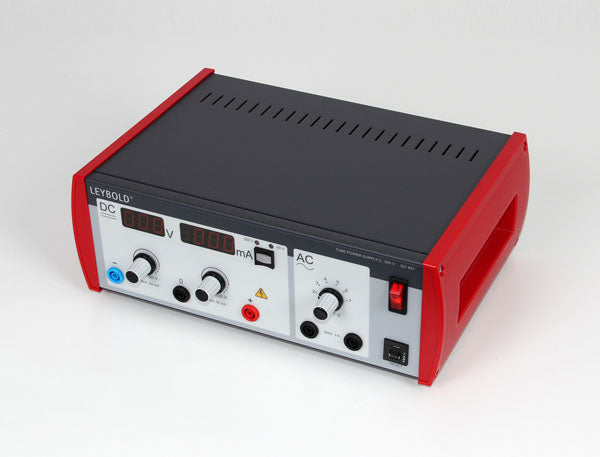

Tube Power Supply 0 to 500 V

Particularly suitable for supplying electron tubes and fine beam tube. Two mutually independent, continuously adjustable short-circuit proof DC voltages with extremely low ripple, additionally equipped with one floating, fixed-voltage output and one variable DC voltage for heating-voltage supply.



Technical Data:

• Output voltages:
  (1) 0 ... -50 V, -50 mA
  (2) 0 ... +500 V, 50 mA
  (3) 2/3/4/5/6/7 V AC, 3A via 4 mm safety sockets
•  DC ripple: < 0.1%
•  Overload protection DC: electronic
•  Overload protection AC: resettable circuit breaker
•  Connection voltage: 230 V, 50/60 Hz
•  Dimensions: 297 mm x 225 mm x 118 mm
•  Weight: 4.55 kg
