521551 AC/DC power supply 0...24 V/0...10 A
521551 AC/DC power supply 0...24 V/0...10 A
Leybold LD Didactic

521551 AC/DC power supply 0...24 V/0...10 A

Regular price $2,300.00 $0.00 Unit price per

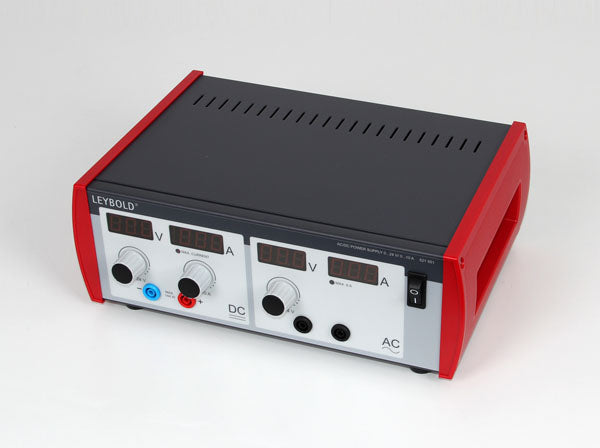

AC/DC power supply 0...24 V/0...10 A

Convenient and powerful all-rounder for laboratory and demonstration use.
Powerful low-voltage power supply unit with separate, continuously variable DC and AC outputs; can be used as constant voltage or DC constant current source. Includes four three-digit digital displays for DC/AC current and voltage; electronically permanently short-circuit proof. LED display for constant current operation or power limitation.
DC and AC part galvanically separated and usable simultaneously.
All outputs galvanically isolated from the mains, floating.

Technical Data:

  •  Output DC: 0 ... 24 V/0 ... 10 A, stabilized,
    maximum current adjustable,
    max. 144 W permanently short-circuit proof
    through 4 mm safety sockets
  •  Residual ripple at full load: < 25 mVpp
  •  Output AC: 0 ... 24 V/0 ... 6 A
    permanently short-circuit proof
    through 4 mm safety sockets
  •  two digital displays for DC: current and voltage
  •  two digital displays for AC: current and voltage
  •  Connection voltage: 230 V, 50/60 Hz
  •  Dimensions: 312 mm x 225 mm x 117 mm
  •  Weight: 3.4 kg

INSTRUCTIONS FOR USE CLICK HERE
