Leybold LD Didactic

521487NA AC/DC power supply PRO 0...12 V/3 A

521487NA AC/DC power supply PRO 0...12 V/3 A

Regular price $450.00
Regular price $770.00 Sale price $450.00
Sale Sold out

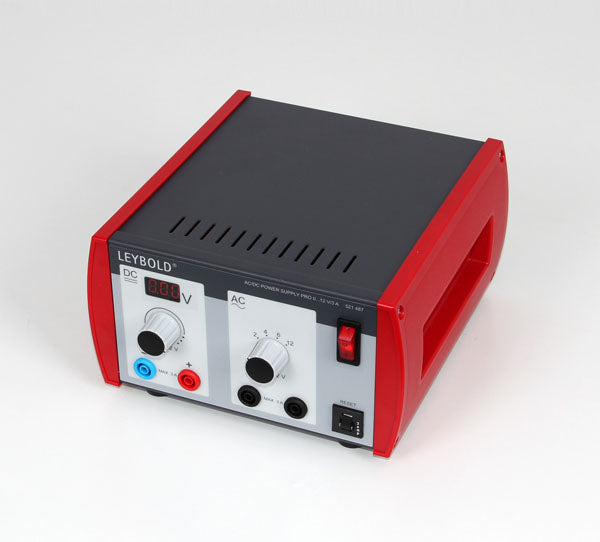

AC/DC power supply PRO 0...12 V/3 A


Standard student power supply with continously adjustable and regulated DC output voltage, AC voltage adjustable in steps, and digital display; AC and DC outputs galvanically isolated, reliable overload protection and circuit protection by electronic current limitation (DC) and circuit breaker (AC). All outputs galvanically isolated from the mains, floating.
Particularly suited for student experiments at all age levels thanks to safe separation in accordance with BG/GUV-SI 8040 (conforms to german RiSU).

  •  Output voltages:
    0 ... 12 V DC, continiously adjustable, stabilised
    2/4/6/12 V AC
  •  Output current: 2x max. 3A
  •  Residual ripple DC: < 100 mV
  •  Display
  •  Overload protection: DC electronic, AC with resettable circuit breaker
  •  Connections: 4 mm safety sockets
  •  Connection voltage: 230 V, 50/60 Hz
  •  Electrical isolation: Isolating transformer in accordance with DIN EN 61558-2-6, (compliant to german RiSU)
  •  Dimensions: 203 mm x 225 mm x 117 mm
  •  Weight: 3 kg
