Leybold LD Didactic

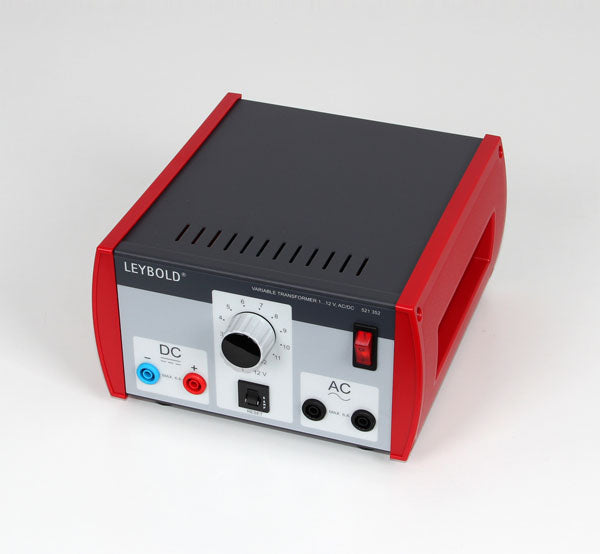

521352 Variable Low-Voltage Transformer 1...12 V/6 A

521352 Variable Low-Voltage Transformer 1...12 V/6 A

Regular price $795.00
Regular price Sale price $795.00
Sale Sold out

Variable low-voltage transformer 1...12 V/6  A

Power supply unit for electrical and simple electronic experiments. Output voltage adjustable in steps; overload protected with circuit breakers. All outputs galvanically isolated from the mains, floating.
Particularly suited for student experiments at all ages due to safe separation in accordance with BG/GUV-SI 8040 (conforms to German RiSU).

Technical Data:

  •  Output voltages: 1 ... 12 V AC and DC, in steps of 1 V
  •  DC voltage: bridge rectification
  •  Load capacity: 6 A, aggregated
  •  Connector: two 4 mm connector pairs for AC and DC
  •  DC and AC part may be used simultaneously, but are not galvanically isolated
  •  Electrical isolation: Isolating transformer in accordance with DIN EN 61558-2-6, (compliant to German RiSU)
  •  Input voltage: 230 V, 50/60 Hz
  •  Dimensions: 203 mm x 225 mm x 117 mm
  •  Weight: 2.8 kg

INSTUCTIONS FOR USE CLICK HERE
