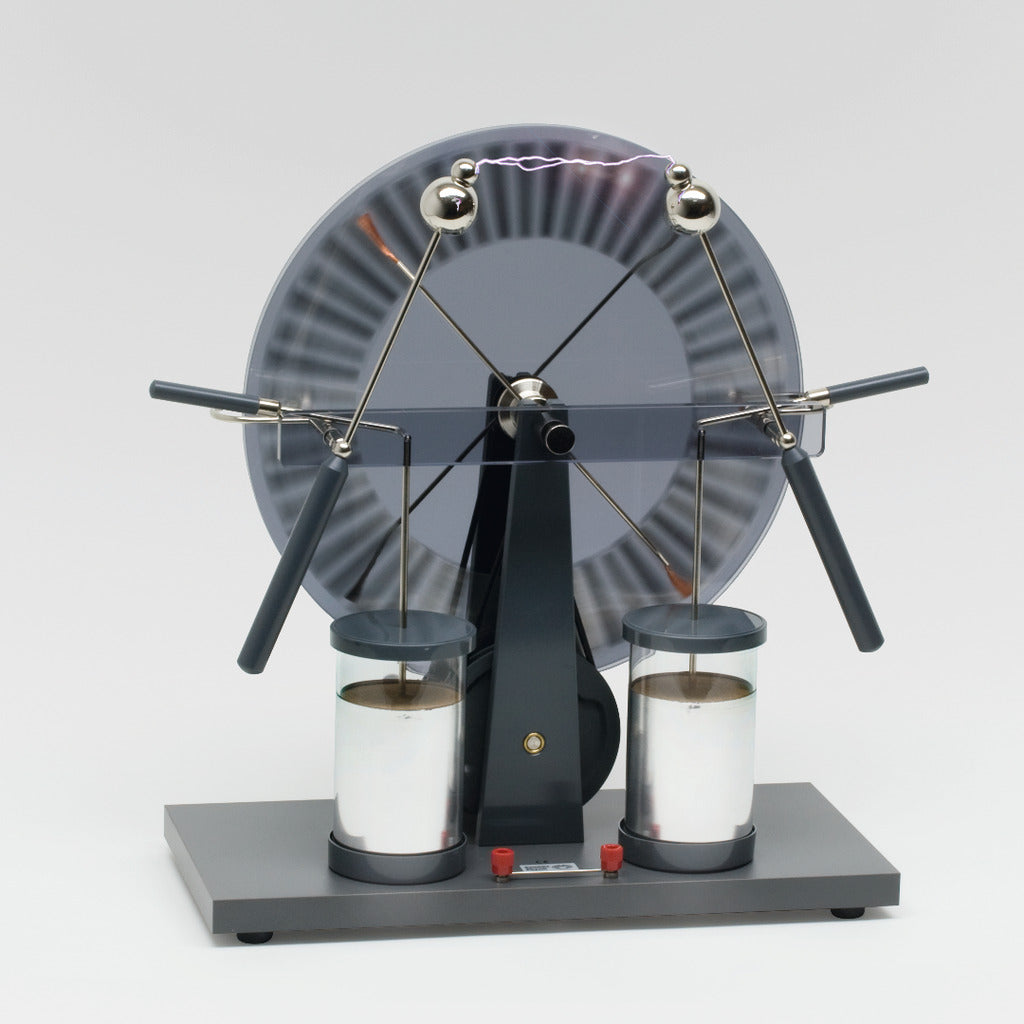

High-Performance Influence Machine (Wimshurst Machine)

For generating high DC voltages. On a plastic-coated wooden base, with hand crank and belt drive, smoke-colored Plexiglas panes with metal foil coverings, two Leiden bottles and a spark gap. Including dust cover. CE mark.

Technical specifications:

Voltage: approx. 120 kV

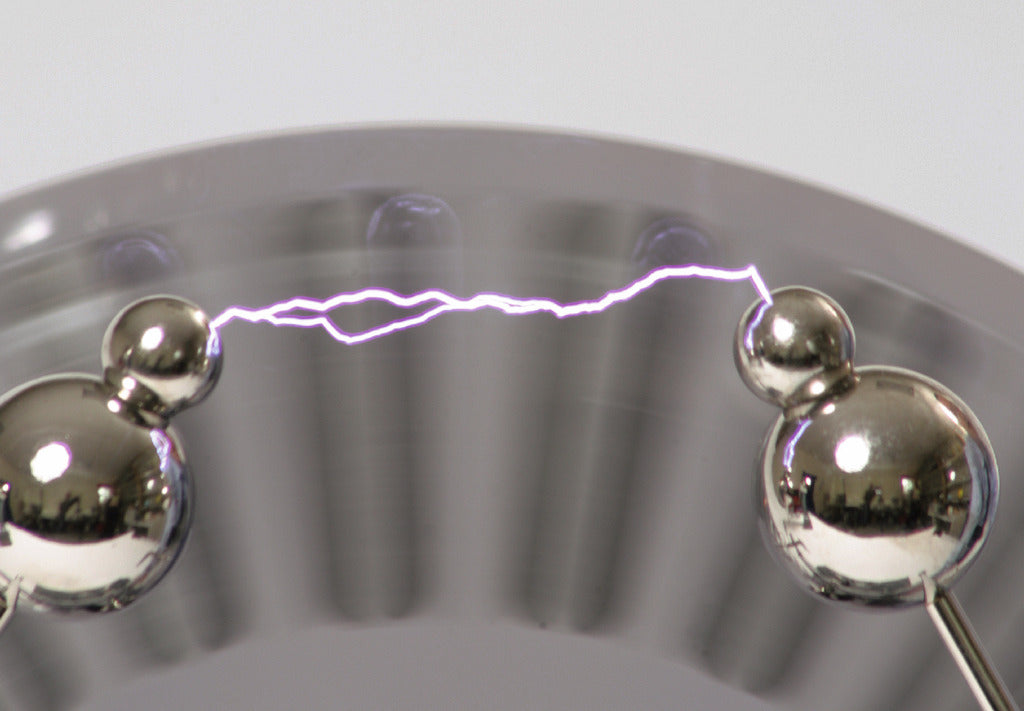

Spark length: approx. 100 mm with low air humidity
Disc diameter: 310 mm
Dimensions: 380 x 180 x 430 mm
Weight: 3.4 kg

Content:

• 1 × Instructions for the induction machine
• 1 × Instructions for the influence machine, English
• 1 × Information sheet for the influence machine
