Leybold LD Didactic

476301 Light Transmitter and Receiver

476301 Light Transmitter and Receiver

Regular price $5,899.00
Regular price Sale price $5,899.00
Sale Sold out

Light Transmitter and Receiver

For measuring the velocity of light and also the refractive indices of optically transparent liquids as well as optically transparent solids using an electronic modulation method. The light only needs to travel short distances (a distance of just 2.5 m between the transmitter and the receiver provides measured values with an accuracy of ± 1%). Fig.: 476 30 with 300 11

  • Light transmitter:
    Transmitter: light-emitting diode (red, 670 nm)
    with condenser
    Modulation frequency: 60.0 MHz ± 5 kHz
    Power supply: via cable from power supply of the receiver
    Dimensions: approx. 12 cm x 7 cm diam.
    Rod: 10 mm diam., 115 mm length
    Weight: 0.8 kg
  • Receiver and power supply unit:
    Sensor: silicon PIN photodiode
    Output voltage:
    reference channel approx. 2 Vpp
    working channel approx. 2 Vpp
    Signal-to-noise ratio: 46 dB
    Load resistor: higher than 2 kΩ
  • Mains supply: 115/230 V, 50/60 Hz
  • Power consumption: 15 VA
  • Fuses: for 230 V: T 0.125 B, for 115 V: T 0.2 B
  • Dimensions: 21 cm x 20 cm x 23 cm
  • Weight: 3.5 kg

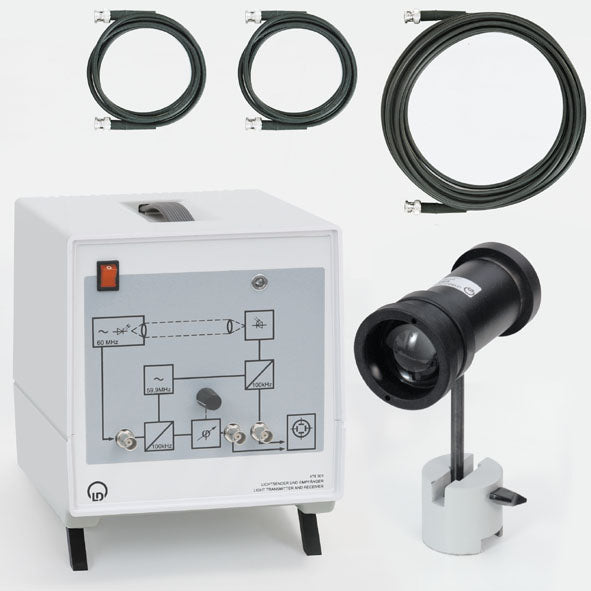

Scope of Delivery:

1 Light transmitter with condenser
1 Receiver with power supply unit
1 BNC cable, 6 m
2 BNC cables, 2 m
