401501NA Ripple Tank D
401501NA Ripple Tank D
Leybold LD Didactic

401501NA Ripple Tank D

Regular price $4,250.00 $0.00 Unit price per

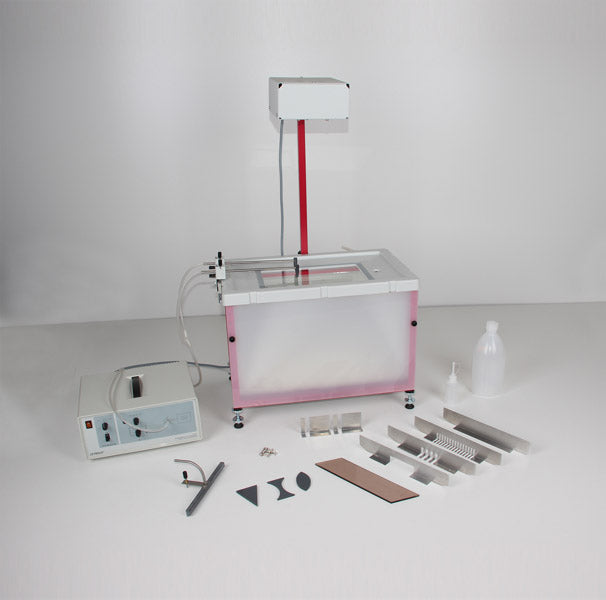

Ripple Tank D

Using water waves to demonstrate wave propagation, reflection, refraction, interference, diffraction, and the Doppler effect. The oscillations of a diaphragm in the frequency generator are transmitted, in the form of fluctuations in air pressure, via variously-formed wave-generators to the surface of the water. Single wave generation, namely generation of a wave packet through key head. Tran illumination of the trough projects an image of the waveforms onto a vertical screen via a plane mirror (possibility of placing the trough on overhead projector). An image of a standing wave is produced by synchronizing a stroboscopic light with the wave propagation.



Technical Data
• Trough with mirror and screen:
Projectable area of trough: 30 cm x 19 cm
Screen size: 50 cm x 32.5 cm
Dimensions: 50 cm x 32.5 cm x 32 cm
• Stroboscope:Lamp data: 12 V, 55 W
Dimensions: 18 cm x 10 cm x 25 cm
• Distance trough - stroboscope: 43 cm
• Frequency generator:
Frequency range: 8 to 80 Hz (continuously adjustable)
Mains supply: 115/230 V, 50/60 Hz,via mains cable
Fuses for 230 V: T 0.63 Bfor 115 V: T 1.25 B

Dimensions: 30 cm x 14 cm x 23 cm
• Total weight: 12 kg



Instructions for use click  HERE
