Air Foil Model

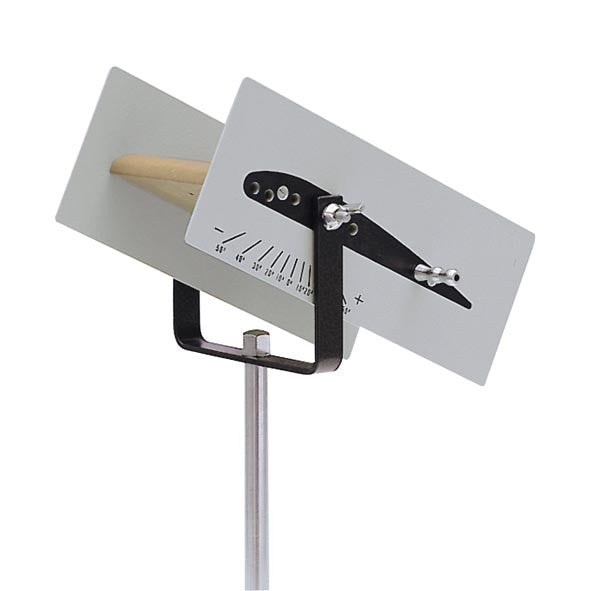

For investigating the pressure characteristic produced in the vicinity of the air foil when the air flow is directed against it. With nine borings in the upper and lower sides, and pressure gauging points on the side. Adjustable angle of incidence, lateral baffle plates for attenuating boundary vortices. With hose nipple and stand rod.



Technical Data;
• Angle of incidence range:-50° to +50°
• Scale: 5° divisions
• Dimensions: 20 cm x 10 cm x 8 cm
