Wind Tunnel

Closed working section with transparent side walls and interchangeable bottom, for quantitative experiments relating to aero-dynamics and the physics of flight, in combination with the suction and pressure fan (373 04). Includes a suction nozzle for turbulence- free air intake and outlet nozzle, to be coupled with the fan. Additional, wedge-shaped insete for bottom surface ("Bernoulli ramp"), for qualitative investigations of the drop in pressure along constricted cross-sections.

Technical Data • Dimensions of the closed working section: 15 cm x 15 cm x 50 cm • Dimensions (overall): 36 cm x 42 cm x 113 cm • Weight: 6 kg

Scope of delivery:

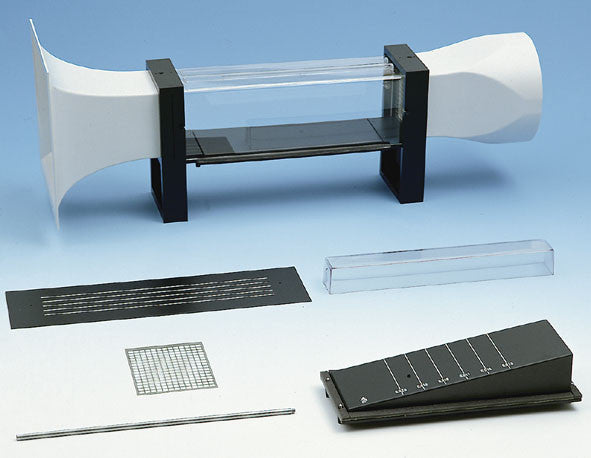

• 1 Suction nozzle
• 1 Diffuser for inserting the suction and pressure fan (373 041)
• 1 Level bottom for experiments relating to the physics of flight and air resistance
• 1 Stabilizing filter, for protection against foreign bodies which are drawn in, and for laminating the air stream
• 1 Bernoulli ramp (scaled)
• 1 Sealing strip (scaled)
• 1 Plastic cover (transparent)
• 1 Rear wall (black) with orientation lines
• 1 Stand rod, Ø 12 mm, 75 cm long with thread
• 1 Dust protection case
• 1 Experiment description on CD (document center
