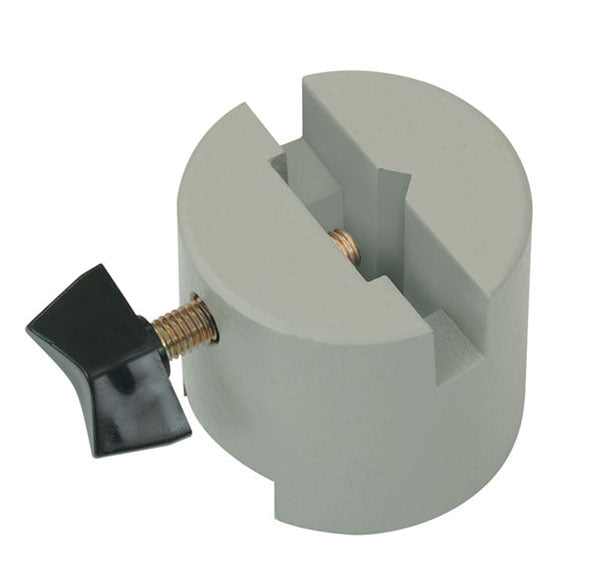

Saddle Base

Cylindrical base with clamping screw for fastening rods and plates. The rectangular groove at the bottom allows the device to be shifted along a linear scale (e.g. 311 02) or a ruler. The groove in the middle serves as a fixture for clamping a linear scale (e.g. 311 03).



Technical Data
• Jaw width for rods: up to 14 mm
• Jaw width for plates: up to 9.5 mm
• Dimensions: 5.5 cm x 6 cm Ø
• Weight: 0.75 kg
