23200 Students Kit Electricity including Circuit Board
23200 Students Kit Electricity including Circuit Board
23200 Students Kit Electricity including Circuit Board
23200 Students Kit Electricity including Circuit Board
CORNELSEN-EXPERIMENTA

23200 Students Kit Electricity including Circuit Board

Regular price $1,735.00 $0.00 Unit price per

Students Kit Electricity including Circuit Board

Complete or as individual modules
In order to meet the different requirements and areas of application of different school types, the equipment set consists of three components.

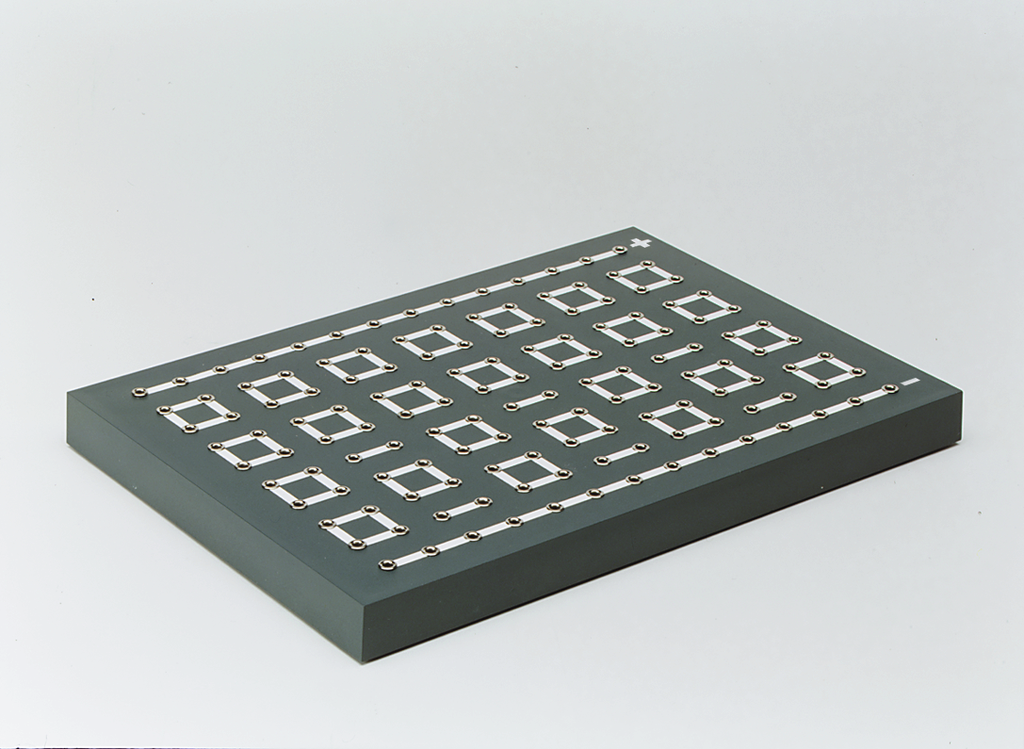

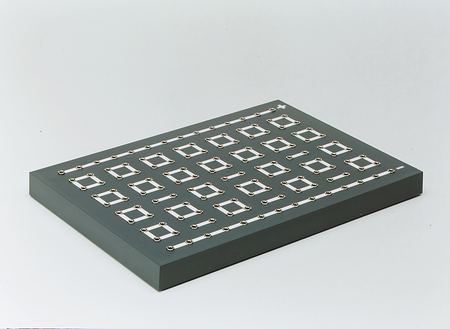

Student set electrics – basics including universal plug-in board

  • Experiments on current flow and basic electrical circuits
  • Experiments on the effects of electric current and investigations on selected technical applications

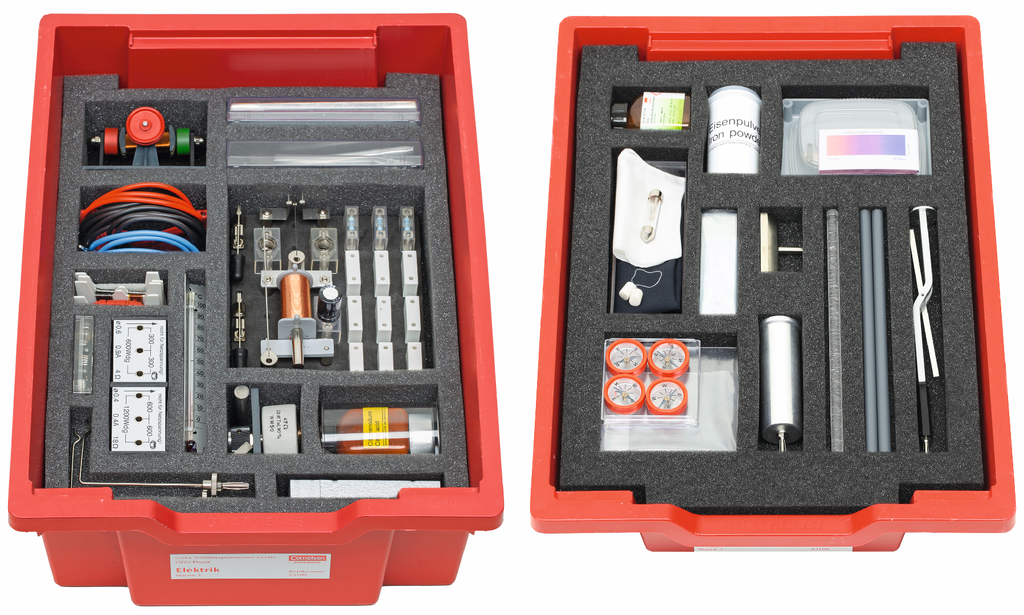

The components of the basic equipment are stowed in a stable plastic tub.

Pupil set electrics – supplement induction and AC voltage

  • further experiments on electromagnetism and electromagnetic induction

The supplementary set can be stored in the SEG Electrics – Basics tray .

SEG Electrics - Complementary Electrostatics, Magnetism and Electrochemistry

  • Investigations to illustrate the properties of permanent magnets
  • Experiments on the detection and behavior of electric charges
  • Experiments on the basics of electrochemistry

The components of this supplementary set are housed in their own tub.


Topics:
Electrostatic
Effects of electric current
Parallel and series connection
Ohm's law
Electromagnetism
Electromagnetic induction
Generator and electric motor
Transformer
Electrochemistry

References to mathematics:

  • statistics
  • proportional relationship

Kit Covers -

  • 1 - Electrical circuit
  • 2 - Electrical circuit with switch
  • 3 - conductor/insulator
  • 4 - power line in liquids
  • 5 - Electrical Voltage
  • 6 - Electric current
  • 7 - Electrical resistance
  • 8 - Ohm's Law
  • 9 - series connection of incandescent lamps
  • 10 - series connection of resistors
  • 11 - parallel connection of incandescent lamps
  • 12 - parallel connection of resistors
  • 13 - series resistor
  • 14 - voltage divider
  • 15 - Specific Resistance
  • 16 - resistance and temperature
  • 17 - bridge circuit
  • 18 - resistance measurement
  • 19 - Electrical power
  • 20 - Electrical work
  • 21 - conversion into thermal energy
  • 22 - lighting effect
  • 23 - line and resistance wire
  • 24 - fuse
  • 25 - bimetallic switch
  • 26 - hot-wire ammeter
  • 27 - magnetic field of a conductor
  • 28 - electromagnet
  • 29 - relay
  • 30 - self-interrupter
  • 31 - Principle of the electric motor
  • 32 - electric motor
  • 33 - induction
  • 34 - Induction at DC voltage
  • 35 - self-induction
  • 36 - Lenz's rule
  • 37 - generator principle
  • 38 - alternator
  • 39 - AC motor
  • 40 - transformer
  • 41 - AC resistance of a coil
  • 42 - condenser
  • 43 - AC resistance of a capacitor
  • 44 - triboelectricity
  • 45 - Force action between charged bodies
  • 46 - Model of an Electroscope
  • 47 - electroscope
  • 48 - polarization/ influence
  • 49 - Influence on the electroscope
  • 50 - charge storage
  • 51 - Faraday Cup
  • 52 - Magnetic Effect
  • 53 - Magnetic field
  • 54 - Force action between magnets
  • 55 - Magnetic Influence
  • 56 - Earth Magnetism/Compass
  • 57 - electrolysis
  • 58 - electroplating
  • 59 - Electrochemical Element
  • 60 - Electrochemical Potentials

Scope of Delivery:

  •  Student set electrics – basics including universal plug-in board
  •  Pupil set electrics – supplement induction and AC voltage
  •  Electrics student set – addition of electrostatics, magnetism, electrochemistry

Additionally Required:

  • 54892
  • Mini digital multimeter
  • 54985
  • Professional digital multimeter
  • 55222
  • Power supply device, 2 to 12 V/3 A
  • 68533
  • Plug-in power supply, 6 V
