204402 Basic Science Kit Physics - Mechanics

The Leybold 204402 Mechanics Kit extends introductory physics teaching with apparatus for pulleys, pendulums, motion and Hooke's law. It requires the 204401 Basic Science Kit, sold separately.

Basic Science Kit Physics - Mechanics

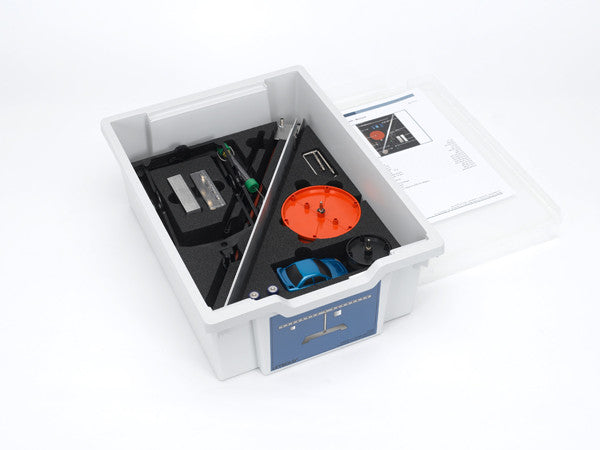

Equipment set for construction basic experiments in mechanics, such as determination of volume and density, Hooke's law, beam balance, pulley block, pendulum, definition of velocity; in storage box fitting the shape of the apparatus with lid.

Technical Data
• Dimensions: 430 mm x 230 mm x 150 mm • Weight: 2.3 kg

Scope of delivery:

1	200 451	Trolley, battery driven
1	311 53	Vernier callipers
1	314 02	Dynamometers, tension and compression, 3 N
1	340 811	Plug-in axle
1	340 831	Lever 37.5 cm
1	340 87	Load hook
1	340 89	Coupling plug 4 mm
2	340 911	Pulley Ø 50 mm, plug-in
2	340 921	Pulley Ø 100 mm, plug-in
2	340 930	Pulley bridge
1	341 221	Inclined plane S
2	342 47	Balance pan with stirrup
1	352 07	Helical spring 10 N/m
1	352 08	Helical spring 25 N/m
1	590 27	Set of weights 1 g to 50 g
2	685 44	Battery 1.5 V (AA)
1	688 137	Friction block



Additionally Required:

1

204 401

Basic Science Kit, Physics: Basic set
