Mini Kit Optics

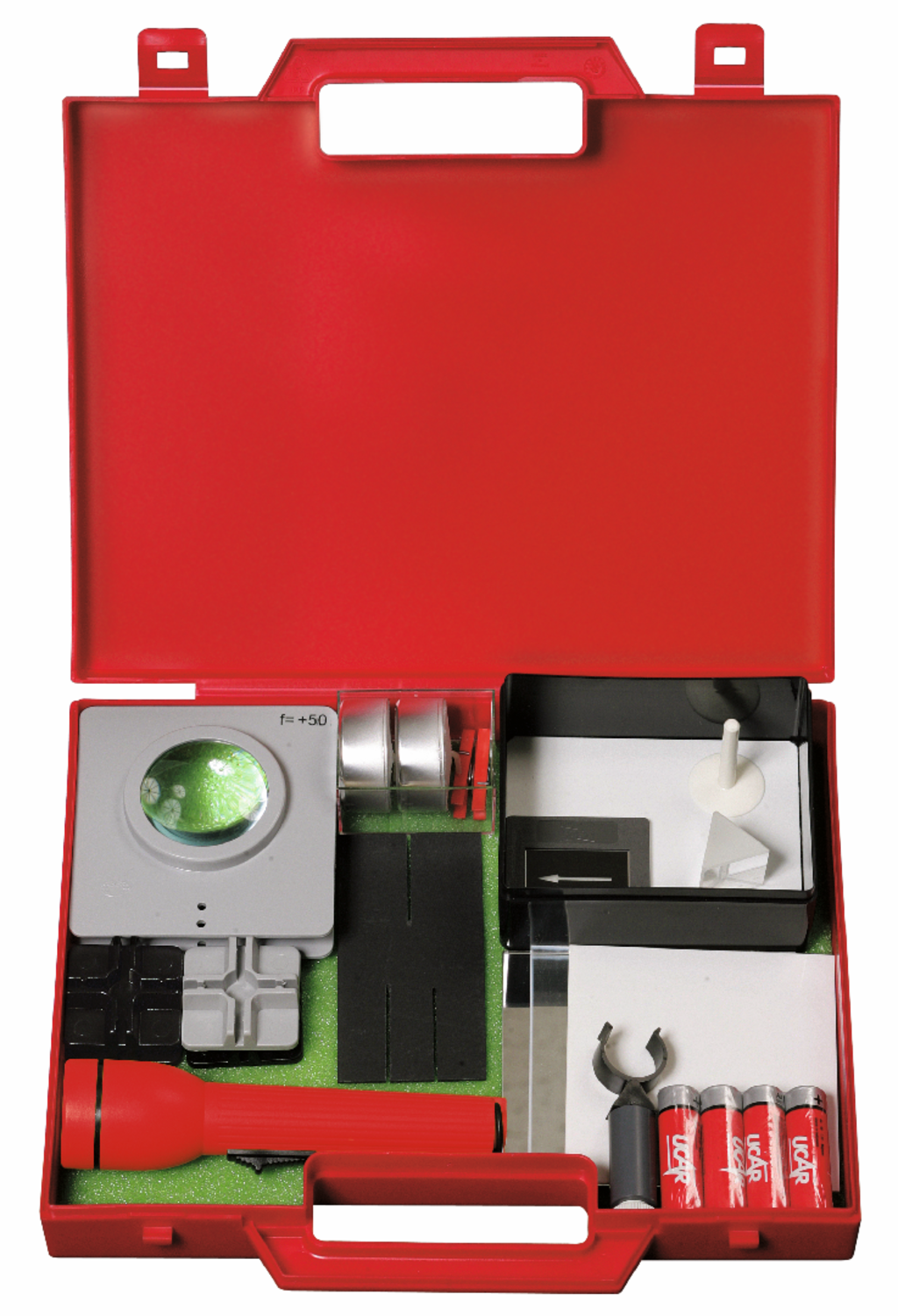

The box contains instructions and materials, e.g. B. a projection box, a flashlight with lamp holder, batteries, a slit screen, lenses, umbrellas and a shadow stick.

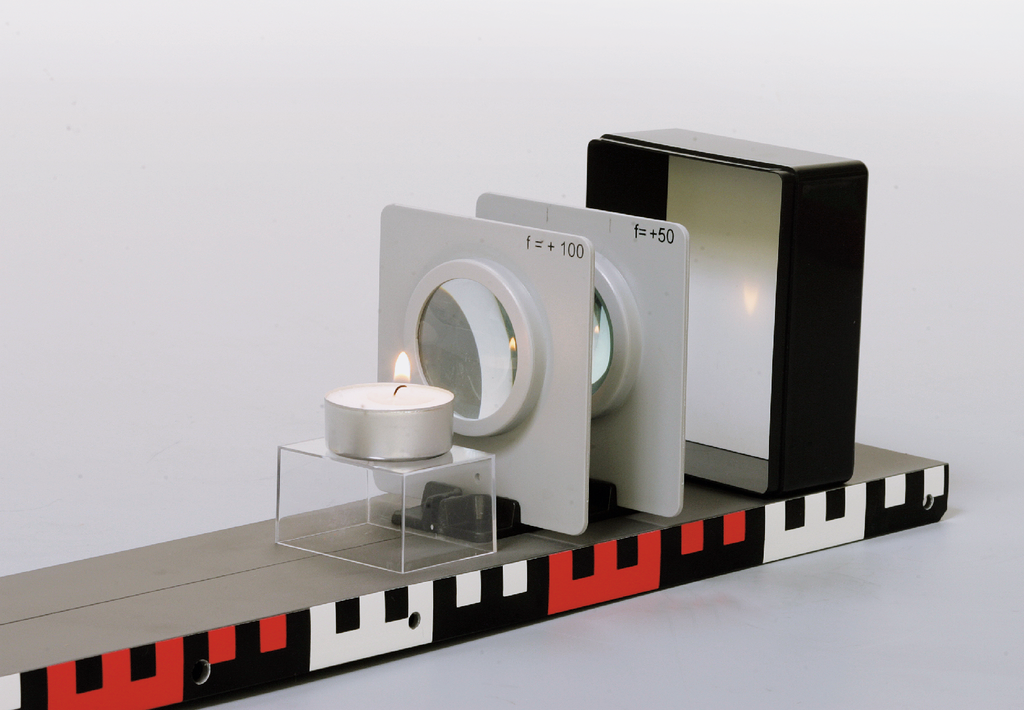

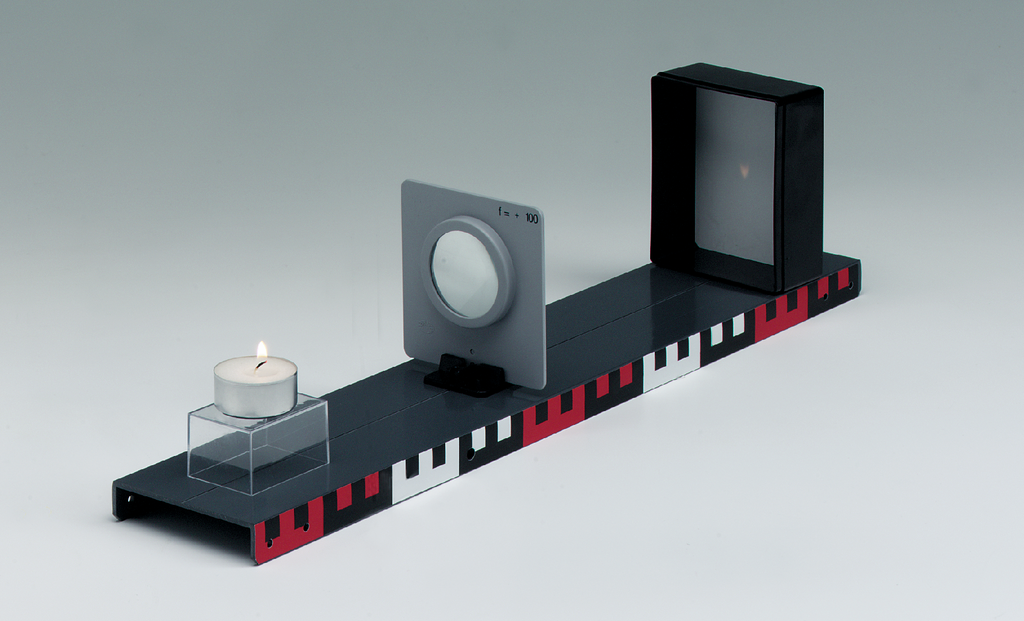

A profile rail on which optical elements are placed
serves as an optical bench. Basic experiments in the field of optics can be carried out with the materials in the box . The instructions describe the following 15 experiments:

•  Propagation of light
• Formation of the shadow
• Reflection of light
• Refraction of light
• Reflection on a mirror

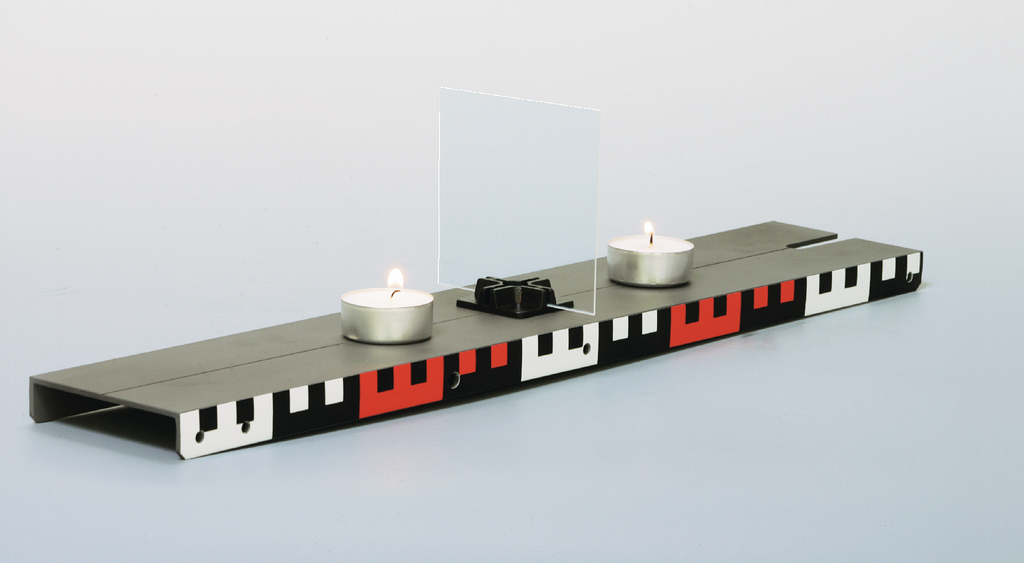

• Images on a flat mirror
• Focus of a converging lens
• Images through converging lenses
• Function of the eye
• Function of the glasses
• Model of a camera
• Model of a slide projector
• Model of an astronomical telescope
• Model of a microscope
• Decomposition of light

• 2 × Tea lights in metal cups
• 3 × Cross stand
• 1 × Art glass, transparent
• 1 × Plastic plate, white
• 1 × Shadow rod (fixing rod)
• 1 × Profile rail with holes
• 1 × Projection box, black
• 1 × Slit diaphragm 2/1
• 1 × Cross stand, gray for 16023
• 1 × flashlight
• 1 × Lamp holder with groove
• 1 × Mirror, glass
• 1 × Lens, f = + 50 mm
• 1 × Lens, mounted biconvex 100 mm
• 1 × Arrow bezel
• 1 × Prism, equilateral, 25 x 25 mm
• 1 × Cuvette
• 4 × Mignon cells 1.5 V, alkaline, 4 pieces

161105 Experiment instructions for mini-box optics
