Fundamental Physics Demo Kit

The box's materials can be used to carry out 96 basic experiments in the fields of  mechanics , energy , heat , acoustics , optics and Electricity.

The focus is more on recognizing the mode of action of physical laws than the exact measurement of physical quantities.

The selection of the individual parts was made under the aspect that they can be used in as many functions as possible.
The setup of the experiments can be carried out functionally reliable with the help of the clear experiment instructions.
No additional tools or equipment are required. It can also be used outside of specialist rooms.

CONTENTS OF THIS KIT:

2 × Magnet, AlNiCo, north pole marked in red

1 × Test tube

3 × Tea lights in metal cups

2 × Rubber stopper, 24/18 mm, with 1 hole

1 × Dye, blue

1 × Thermometer with a metal scale

2 × Filter tube with hose attachment

1 × Connection hose, 300/14 mm outer diameter

1 × Copper wire with insulation

1 × Heating wire, wound

1 × Small material circuits (in box)

3 × Cross stand

1 × Art glass, transparent

1 × Plastic plate, white

1 × Shadow rod (fixing rod)

1 × Ceramic wire mesh

2 × Weighing pan with bracket

1 × Weight set

1 × Profile rail with holes

1 × Cup, 500 ml

1 × Friction surface

1 × Silicone hose, 7/10 mm inside / outside Ø

1 × Hourglass, 1 minute

1 × Projection box, black

1 × Slit diaphragm 2/1

1 × flashlight

1 × Needle holder

1 × Plastic rod with hole

1 × Retaining bracket

1 × Plastic syringe with tube attachment, 30 ml

1 × Clip with screw for syringe 10 ml1 × Clip with screw for 30 ml syringe

1 × Clip with screw for pressure gauge tube

1 × Angle for 16007

1 × Lamp holder with groove

1 × Graphite lead 3 mm

1 × Lever arm with socket (one side flush)

2 × Clamp for 16300

1 × Beaker, 50 ml, hf heat-resistant

1 × Multipurpose sound box

2 × String tensioner

1 × Triangular web

1 × Tuning fork, 95 mm

1 × Hearing tube

1 × Mallets

1 × Spring steel strips with oscillating head

2 × Alligator clip with 4 mm plug

1 × Spool with core and two 4mm plugs

1 × Lever switch arm on connector pin

1 × Switch contact on plug pin

1 × Elder marrow pendulum

1 × Tension cord with membrane plate

1 × Cup with hole, for tension cord

1 × Material samples

1 × Force gauge, 1 N

1 × Coil spring, 100 mm / max. 12 N.

1 × Paddle wheel

1 × Roll, plastic, 58 mm Ø

1 × Loose roll with 1 hook, 58 mm Ø

1 × Compass rose plate

2 × Weights with double hooks, 50 g

2 × Weights with double hooks, 25 g

1 × Float for bar magnet

1 × Steel ball

1 × U-tube, plexiglass

1 × Mirror, glass

1 × Lens, f = + 50 mm

1 × Lens, mounted biconvex 100 mm

1 × Arrow bezel

1 × Prism, equilateral, 25 x 25 mm

1 × Cover and slide holder without rod

1 × Cuvette

1 × Plastic tub, transparent

1 × Feeding bottle, plastic, 90 ml

1 × Plastic funnel

1 × Plastic cup, 100 ml

1 × Recoil car

3 × Balloons, 100 pieces

1 × Esbit burner, nickel-plated

1 × Metal plate

1 × Cord, 1 mm Ø

1 × Erlenmeyer flask, 25 ml, black

1 × Coarse iron powder in a shaker with lid, 200 g

1 × Needle holder with pin

4 × Mignon cells 1.5 V, alkaline, 4 pieces

2 × Socket E10

1 × Glow lamp, festoon, 5 pieces

1 × Incandescent lamps E10 / 4 V / 1.0 A, 10 pieces

5 × Incandescent lamps E10 / 2.5 V / 0.1 A, 10 pieces

1 × Electric bell on plug element

1 × Socket with mignon cell holder, 2 cells

1 × Electric motor with connector pins

1 × Erlenmeyer flask, DURAN®, EH, 25 ml

1 × Glass tube, straight, 80 mm, with point

1 × Glass tube, straight, 200 mm

1 × Rubber stopper, 24/19 mm

2 × Bridge plug, 19 mm spacing

1 × Measuring cylinder 25 ml

1 × Test tubes, Fiolax, 160x16 mm, 100 pieces

1 × Quick disconnect hose coupling

4 × Clamping sleeve1 × Metal axle 125

1 × Air cushion plate with hole

1 × Bimetal strips

2 × Plastic box, 60/40/18 mm

2 × Plastic box, 140/50/35 mm

2 × Plastic box, 105/90/50 mm

2 × Plastic box, 140/50/25 mm

1 × Plastic box, 140/50/25 mm

1 × Clearance plan for elementary physics

EXPERIMENTS:

1 - Mechanics of solids: volume measurement

2 - Mechanics of solid bodies: force measurement

3 - Mechanics of solids: timekeeping

4 - Mechanics of solids: the effect of forces

5 - Mechanics of the body: inertia of the mass

6 - Mechanics of solid bodies: stability

7 - Mechanics of solid bodies: friction

8 - Mechanics of solid bodies: two-way lever

9 - Mechanics of solid bodies: one-way lever

10 - Mechanics of solid bodies: dynamometers

11 - Mechanics of solid bodies: beam balance

12 - Mechanics of the solid body: sliding weight scale

13 - Mechanics of solids: center of gravity

14 - Mechanics of solid bodies: Fixed role

15 - Mechanics of solid bodies: loose role

16 - Mechanics of solid bodies: principle of the pulley block

17 - Mechanics of solids: inclined plane

18 - Mechanics of Liquid Bodies. Water level

19 - Mechanics of Liquid Bodies. Connected vessels

20 - Mechanics of liquid bodies: capillary action

21 - Mechanics of liquid bodies: surface tension / adhesion

22 - Mechanics of fluid bodies: pressure propagation

23 - Mechanics of liquids: pressure distribution in liquids

24 - Mechanics of liquid bodies: hydraulic power transmission

25 - Mechanics of liquid bodies: buoyancy in liquids

26 - Mechanics of liquid bodies: Archimedes principle

27 - Mechanics of liquid bodies: swimming, floating, sinking

28 - Mechanics of liquid bodies: flowing water has power

29 - Mechanics of gaseous bodies: air is a body

30 - Mechanics of gaseous bodies: compression and expansion

31 - Mechanics of gaseous bodies: U-tube manometer

32 - Mechanics of gaseous bodies: heating and cooling of gases

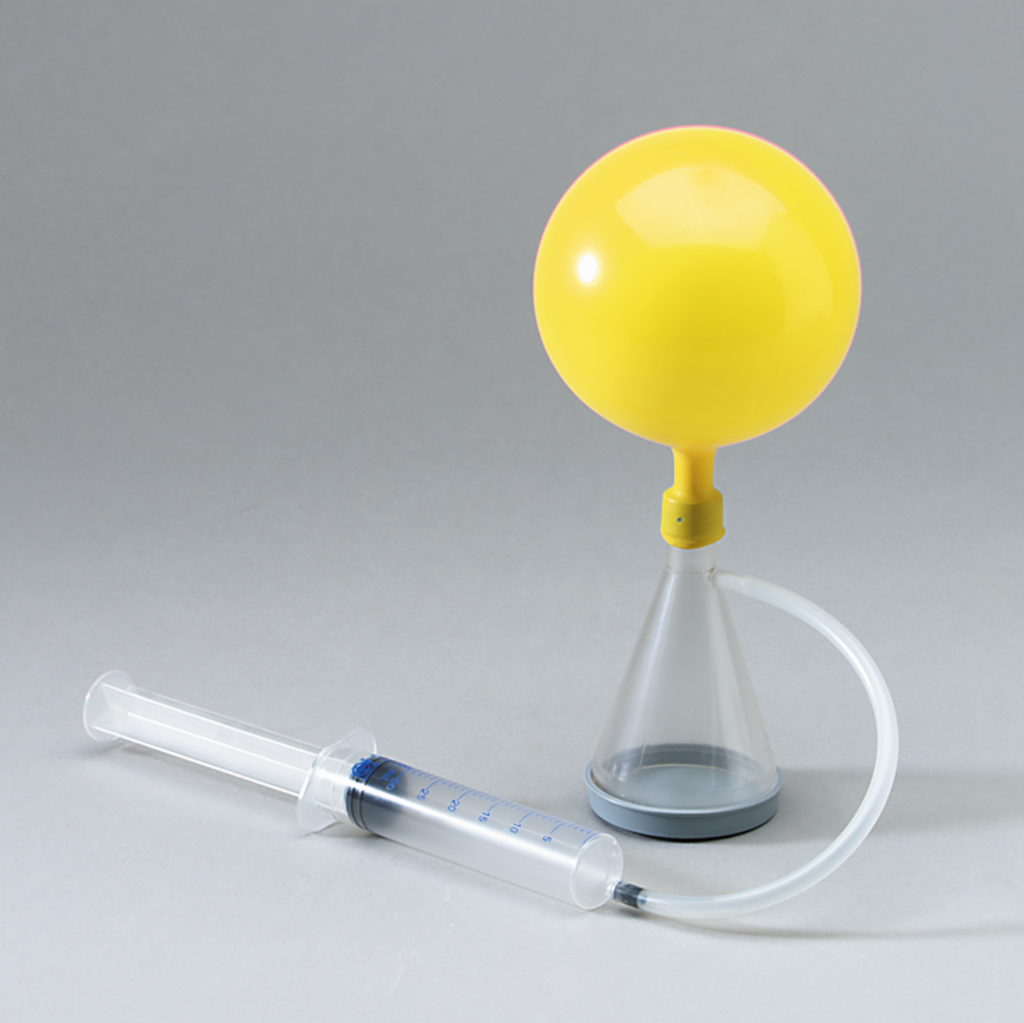

33 - Mechanics of gaseous bodies: positive and negative pressure

34 - Mechanics of gaseous bodies: the effect of air pressure

35 - Mechanics of gaseous bodies: model of a suction hood

36 - Mechanics of gaseous bodies: model of a squirt bottle

37 - Mechanics of gaseous bodies: the force of a gas

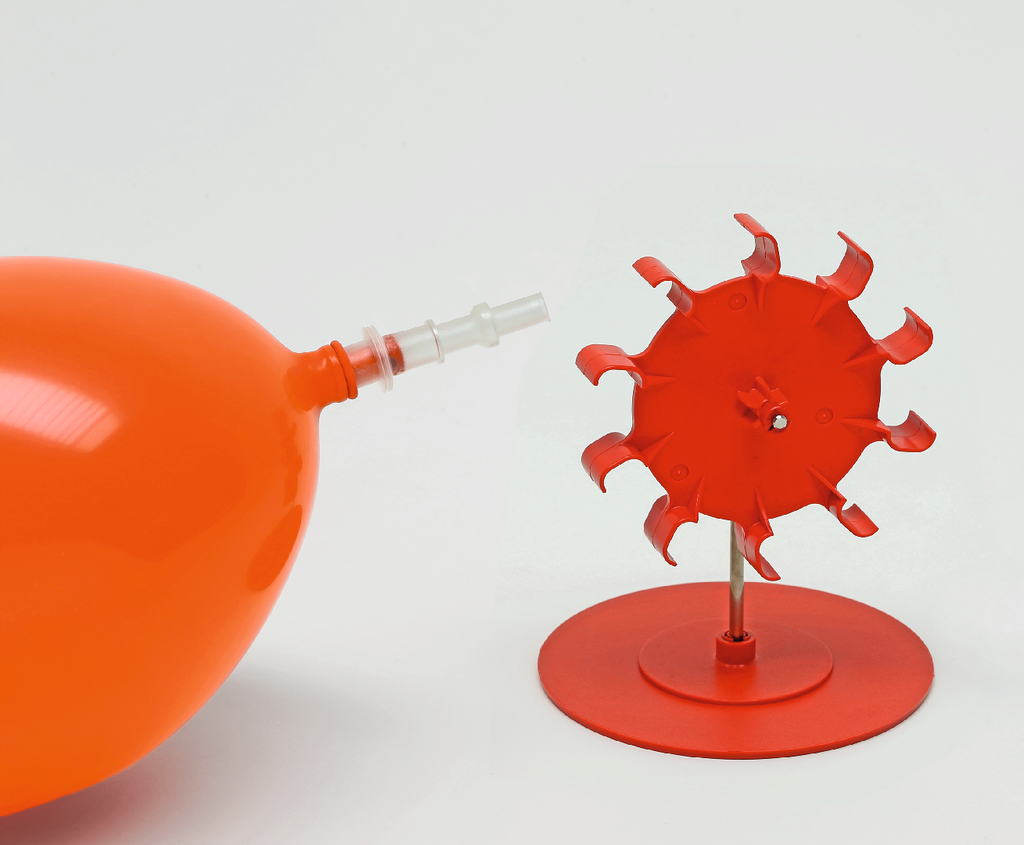

38 - Mechanics of gaseous bodies: flow energy of the air

39 - Heat: model of a thermometer

40 - heat. Evaporation and condensation

41 - warmth. Change in shape through heat

42 - Heat: heat conduction

43 - Heat: thermal radiation

44 - warmth. Absorption of thermal radiation

45 - Heat: heat flow

46 - Heat: change in volume of air when heated and cooled

47 - Heat: change in volume of water vapor when heated and cooled

48 - Sound: origin of sound

49 - Sound: sound waves

50 - Sound: high and low tones

51 - Sound: amplification of sound

52 - Sound: transmission of sound

53 - Light: propagation of light

54 - Light: shadow formation

55 - Light: reflection of light

56 - light. Images on a flat mirror

57 - light: mirror writing

58 - Light: reflection on a flat mirror

59 - Light: refraction of light

60 - Light: focal point of a converging lens

61 - light. Imaging through converging lenses

62 - light. Function of light

63 - Light: the function of glasses

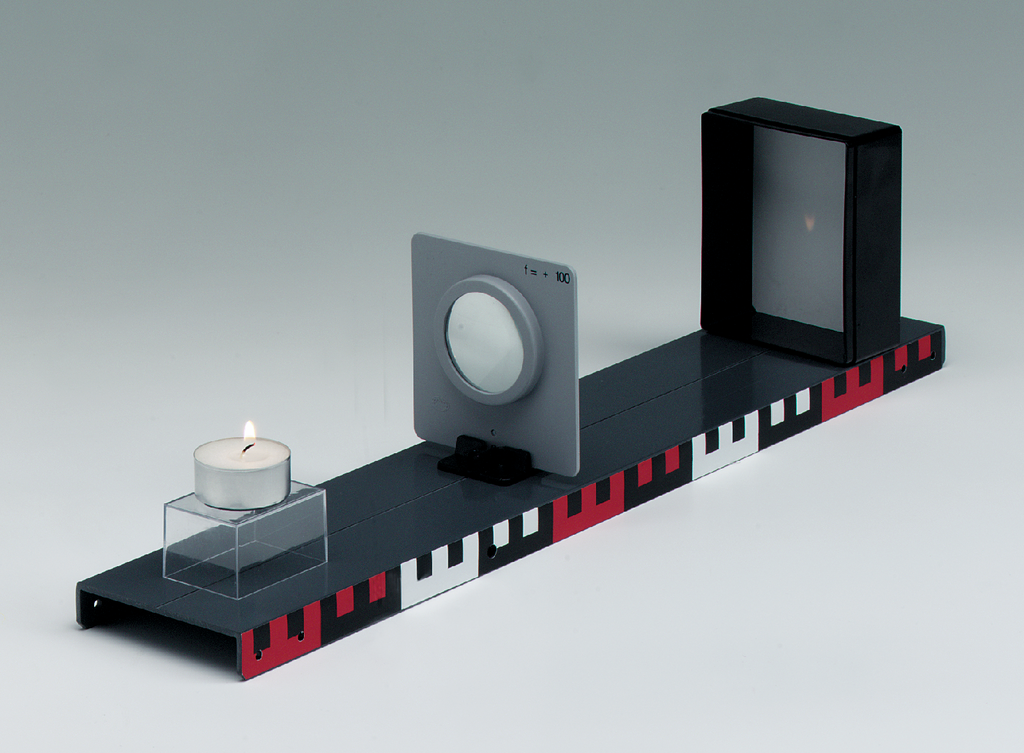

64 - Light: model of a slide projector

65 - Light: model of a camera

66 - Light: model of an astronomical telescope

67 - Light: model of a microscope

68 - light: decomposition of light

69 - Magnetism: Magnetic substances

70 - Magnetism: attraction of a magnet

71 - Magnetism: magnetic field

72 - Magnetism: Magnetic field lines

73 - Magnetism: the effect of force between two magnets

74 - Magnetism: levitating magnets

75 - Magnetism: Earth's magnetic field

76 - Magnetism: construction of a compass

77 - Magnetism: static electricity

78 - Electricity: Polarization and Influence

79 - Electricity: Electrostatic ball dance

80 - Electricity: model of an electroscope

81 - Electricity: Influence in the electroscope

82 - Electricity: Faraday cage

83 - Electricity: Circuit

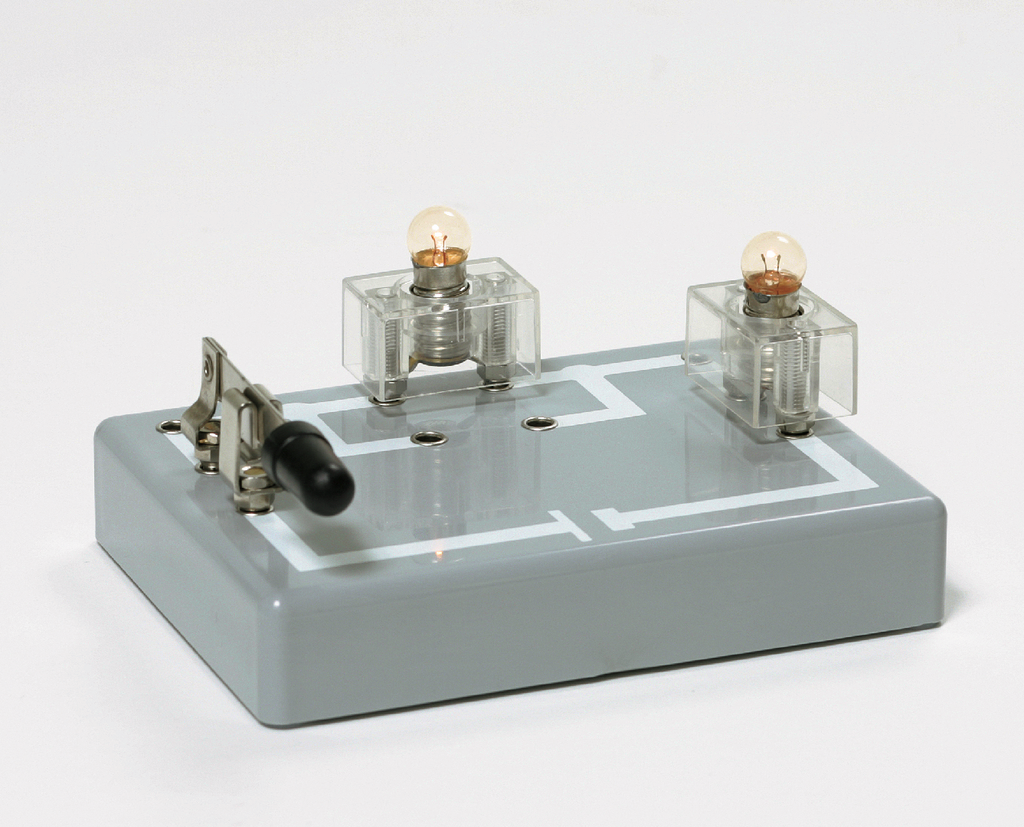

84 - Electricity: circuit with switch

85 - Electricity: conductors and non-conductors

86 - Electricity: electrical resistance

87 - Electricity: thermal effect of the electric current

88 - Electricity: parallel connection

89 - Electricity: series connection

90 - Electricity: Magnetic effect of the electric current

91 - Electricity: Electromagnet

92 - electricity. Electromagnet 2

93 - Electricity: principle of the telephone

94 - Electricity. Electric bell

95 - Electricity: electric motor
